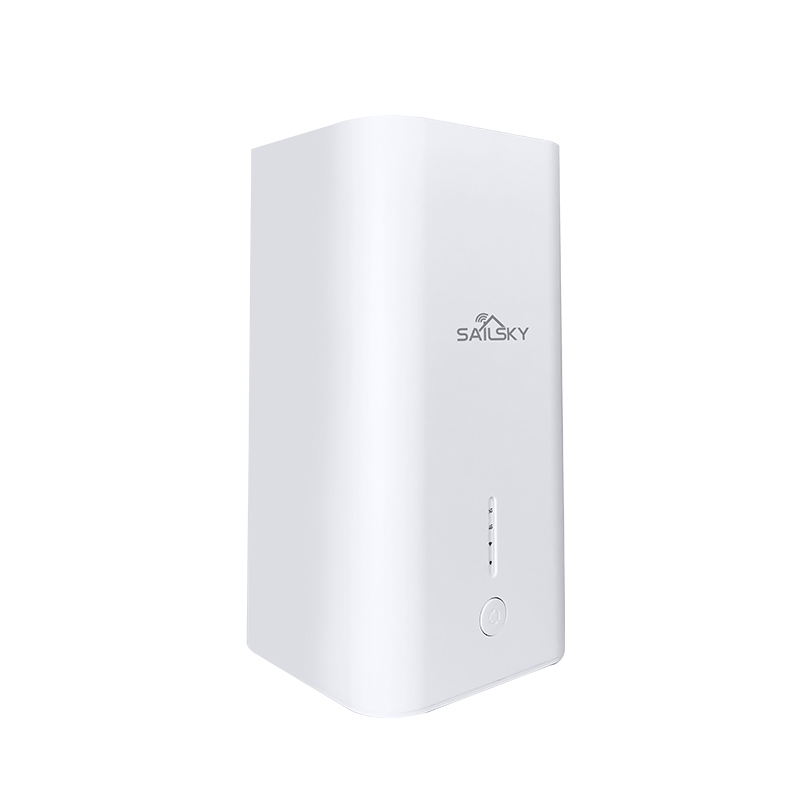

OEM/ODM 5G Wi-Fi6 Dual Band Sim Card Router XM530 With SDX62 Chipset
Model: XM530 5G Router
XM530 is a 5G WiFi 6 indoor wireless Smart Router (CPE), is based on brand-new embed platform and with the wifi 6 ax new technology. It can provide you speed beyond imagination of 10-30Gbps in 5G full coverage. It comes with the gigabit ethernet, support more than 500 users on the same time. Compatible with NSA/SA dual mode, applicable to all network types around the world, insert 5g sim card for 5G to wifi.
Main Features:
- Multiple Mobile Network Compatible;Support 3G WCDMA,4G LTE,5G NSA+SA mobile networks;Compatible global bands, support all SIM cards.
- Easy install,Plug and play, High speed and more Powerfull,support up to 100+ wifi users.
- 5G throughput is more than 750Mbps,almost 10x faster compared 4G network;It is 750Mbps+ when tested in Quectel office, 680Mbps in Kazakhstan, 562Mbps in our office, nearly 150Mbps higher than some famous branded 5G CPE.
- High wireless speed 1800mbps with 802.11ax Wi-Fi6 standard;Combined 2.4G and 5.8G SSID together, 5.8G first, allow users connect to the fastest wireless signal always.
- Better Signal, more wireless range;There is large space on the housing to install the 5G and Wi-Fi antenna, more gain and less interference; More than 150Mbps data rate in 35 meters distance with one wall;
- Standing design, beautiful and generous appearance, comfortable hand feel, easy operation.
- Multiple application environment;Support VPN L2TP/PPTP, easy to achieve VPN remote control; Besides home use, this 5G CPE is publicly used in office, banks, chain stores, outdoor camping etc.
Interested?
Welcome to Contact Us for a Quotation!
Ship within 7-10 Working Days for Stocking Products,Customized product should be negotiated
Specifications
Model | XM530 |
5G Chipset | SDX62 |
WiFi Chipset | MT7621DAT+MT7905N+MT7975DN |
Flash | 16MB |
RAM | 256MB DDR3 |
5G cellular | |
5G Module | RM500U-CNV/RM500U-EA |
5G Bands:5G Module:RM520N-EUEurope/ Middle East/ Africa/ Asia Pacific/ Brazil Version | 5G NR NSA:n1/ 3/ 5/ 7/ 8/ 20/ 28/ 38/ 40/ 41/ 71/ 75/ 76/ 77/ 78 5G NR SA:n1/ 3/ 5/ 7/ 8/ 20/ 28/ 38/ 40/ 41/ 71/ 75/ 76/ 77/ 78 4G LTE: FDD:B1/ 3/ 5/ 7/ 8/ 20/ 28/ 32/ 71 TDD:B38/ 40/ 41/ 42/ 43 UMTS WCDMA:B1/ 5/ 8 CNSS:GPS/ GLONASS/ BDS/ Galileo/ QZSS |
5G Bands:5G Module:RM520N-GLGlobal version | 5G NR NSA:n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/79 5G NR SA:n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79 4G LTE FDD:B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/ 71 TDD:B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48 LAA:B46 UMTS WCDMA:B1/ 2/ 4/ 5/ 8/ 19 CNSS:GPS/ GLONASS/ BDS/ Galileo/ QZSS |
5G NR | 3GPP Release 15 NSA/SA operation,Sub-6 GHz |
5G Standards | 3GPP Release 16 |
5G SA Transmission Speed | DL 2.4 Gbps; UL 900 Mbps |
5G NSA Transmission Speed | DL 3.4 Gbps; UL 550 Mbps |
4G LTE | DL 1.6 Gbps; UL 200 Mbps |
WCDMA | DL 42 Mbps; UL 5.76 Mbps |
Wifi6(802.11ax) | |
Standard | IEEE 802.11b/g/n/ac/ax |
Frequency | 2.4G: 2400 – 2484MHz.5.8G: 5150 – 5850MHz |
Data Rate | 600Mbps @ 2.4GHz.1200Mbps @5.8GHz |
RF Power | ≤ 18dBm |
WiFi Users | Up to 100+ Clients |
IP Protocol | IPv4/IPv6 |
Operation mode | Router/5G |
Security | Open, WPA, WPA2PSK_TKIPAES, WAP2_EAP, 802.1x, WPA3 |
Button | Reset Button,WPS Button |
LED Indicator | WiFi,Power,ETH |

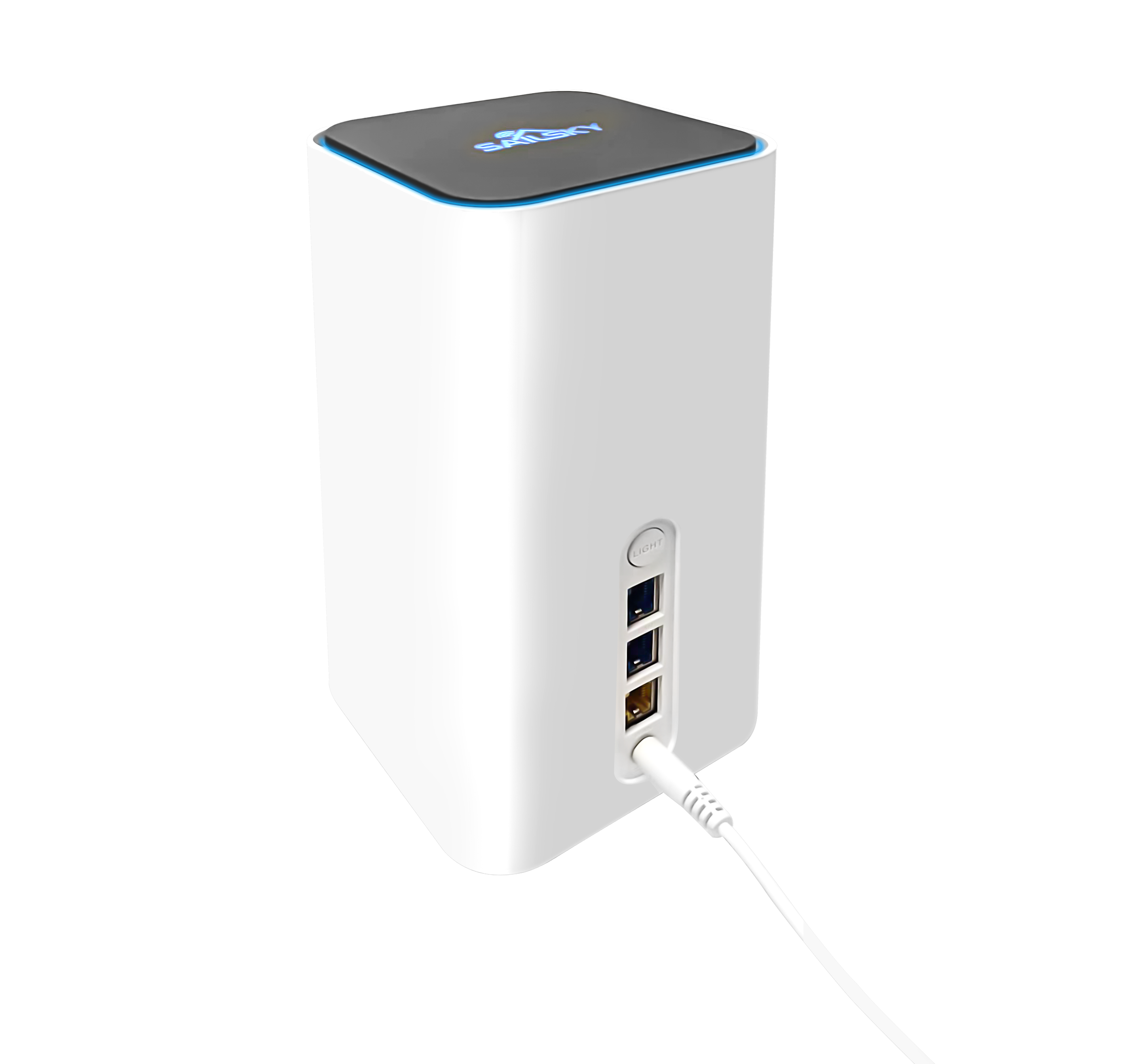

Interface | Ethernet:1*1Gbps WAN, 2*1Gbps LAN Card slot:1* SIM Slot(Nano-SIM) Switch:LED Switch |
Antenna | Build in 5dBi MIMO Antenna |
DC Power Supply | 12V/1.5A |
Working temperature | -40℃~+55℃ |
Storage temperature | -60℃~+70℃ |
Humidity | 5%~95% |
Sailsky XM520 5G CPE Router & WiFi-6 Smart Router System (CPE), is based on brand-new embed platform, it can be satisfied with growing up mobile connections requirements and provides the fast speed beyond your imagination.
The CPE is compatible with NSA/SA dual-mode, suits to all network types all over the world, it means you just plug and play it and enjoy the ultra-fast broadband connection at any places.
The CPE brings the new way to enable you experience VR/AR/4K/8K streaming freely and easily. With 802.11ax (Wi-Fi 6) technology built-in, the single CPE has wider wireless coverage and more bandwidth. Meanwhile the CPE brings higher security, better network efficiency and longer battery life.
Benefits of Sailsky XM520 5G CPE Router
XM520 adopts 5G & WiFi-6 Smart Router System (CPE), is based on brand-new embed platform, it can be satisfied with growing-up mobile connections requirements and provides the fast speed beyond your imagination. The CPE is compatible with NSA/SA dual-mode, suits to all network types all over the world, it means you just plug and play it and enjoy the ultra-fast broadband connection at any places. The CPE brings the new way to enable you experience VR/AR/4K/8K streaming freely and easily. With 802.11ax (Wi-Fi 6) technology built-in, the single CPE has wider wireless coverage and more bandwidth. Meanwhile the CPE brings higher security, better network efficiency and longer battery life.
What’s more?
Sailsky has made an evolution in modern 5g cpe router technology. Our products are extremely versatile to be used over any network band and device. For the indoor purpose the devices’ antennas are strong enough to disperse in all directions! No matter if the door is closed! Thanks to Sailsky making wifi modem a new level!
Download
Sailsky XM530: The Ultimate 5G & Wi-Fi 6 Smart Router System (CPE)
The Sailsky XM530 is a revolutionary 5G SIM card wireless router, powered by the Qualcomm SDX62 chipset. Designed with cutting-edge technology and a sleek, modern design, this global version CPE ensures seamless connectivity anywhere in the world.
Key Highlights:
- 5G + Wi-Fi 6 Integration: Combines the ultra-fast speeds of 5G with the enhanced efficiency and bandwidth of Wi-Fi 6 (802.11ax).
- Global Compatibility: Supports NSA/SA dual-mode, making it suitable for all network types worldwide. Just plug and play to enjoy ultra-fast broadband in any location.
- Unmatched Performance: Delivers exceptional speed and stability, enabling VR/AR, 4K/8K streaming, and other high-bandwidth applications effortlessly.
- Enhanced Coverage: Wider wireless range and greater bandwidth to meet the demands of growing mobile connections.
- Improved Efficiency & Security: Offers better network efficiency, advanced security features, and extended device battery life.
Experience the Future of Connectivity
With the Sailsky XM530, enjoy an unparalleled internet experience—whether for gaming, streaming, remote work, or smart home integration.
Upgrade to the Sailsky XM530 today, and redefine the way you connect!
