Sailsky SY200 11N 300Mbps Outdoor CPE PTP/PTMP 2.4Ghz 1KM Distance CPE
Model: SY200 Outdoor WiFi CPE
SY200 is a 2.4G outdoor PTP support 24V PoE; Comply with IEEE 802.11b/g/n standard, 300Mbps data rate; Support 24V PoE and IP65 level outdoor case, it is easy to install in outdoor for 1KM+ distance long-range data transmission and receive.
Key Features:
- Single-frequency outdoor CPE works in the 2.4GHz frequency band.
- Supports 300Mbps AP, can access more wireless clients.
- Uses dustproof and waterproof shell, all-weather sunscreen, waterproof, dustproof seal design can be used in various outdoor Working in the environment.
- Supports PoE remote 100M network cable power supply and DC power supply mode.
- Support digital display pairing information for remote pairing debugging is the preferred device for your network topology.
Interested?
Welcome to Contact Us for a Quotation!
Ship within 7-10 Working Days for Stocking Products，Customized product should be negotiated
Specifications
| Product model | SY200 Outdoor CPE |
| Product name | Wireless Outdoor Wi-Fi Bridge |
| Product keywords | Outdoor CPE |
| Chipset | MTK 7628KN 300Mbps |
| Flash | 1MB |
| RAM | 8MB |
| Frequency | 2.300GHz ~ 2.4835GHz |
| Transfer protocol | IEEE802.11 g/n |
| Transmission rate | 2.4GHz :300 Mbps |
| Modulation mode | OFDM = BPSK, QPSK, 16-QAM, 64-QAM; DSSS = DBPSK, DQPSK, CCK |
| Output power |
|
| Receiving sensitivity |
|
| EVM |
|
| Frequency offset | ±20ppm |

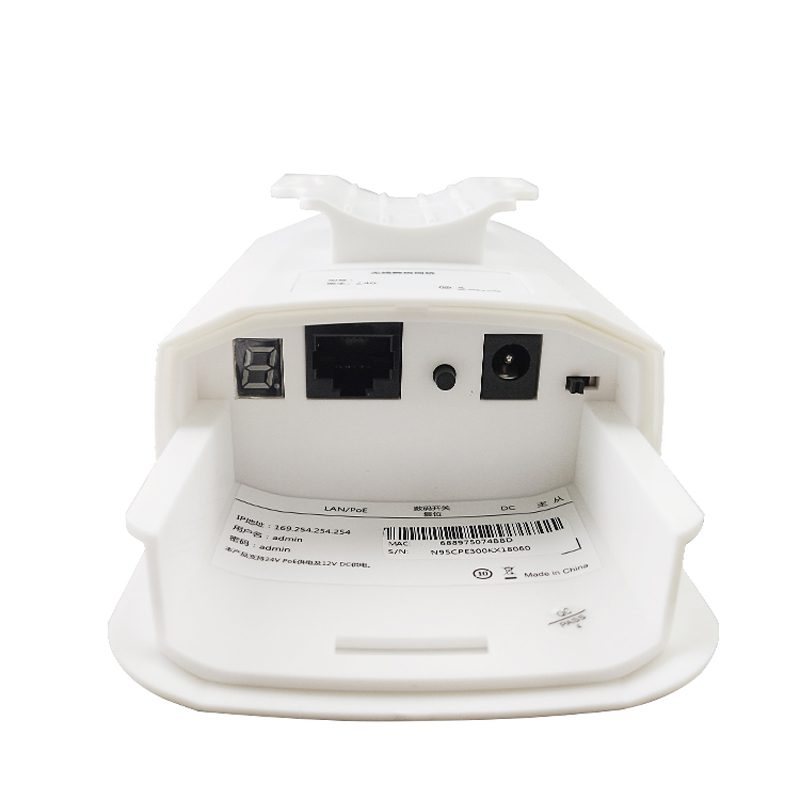

| Interface | 1 10/100M adaptive WAN port (POE 24V 0.5A) |
| Power supply |
|
| DIP switch | Define product AP mode and client mode |
| Reset button | Reset button (long press to reset, short press to debug digital display plus or minus) |

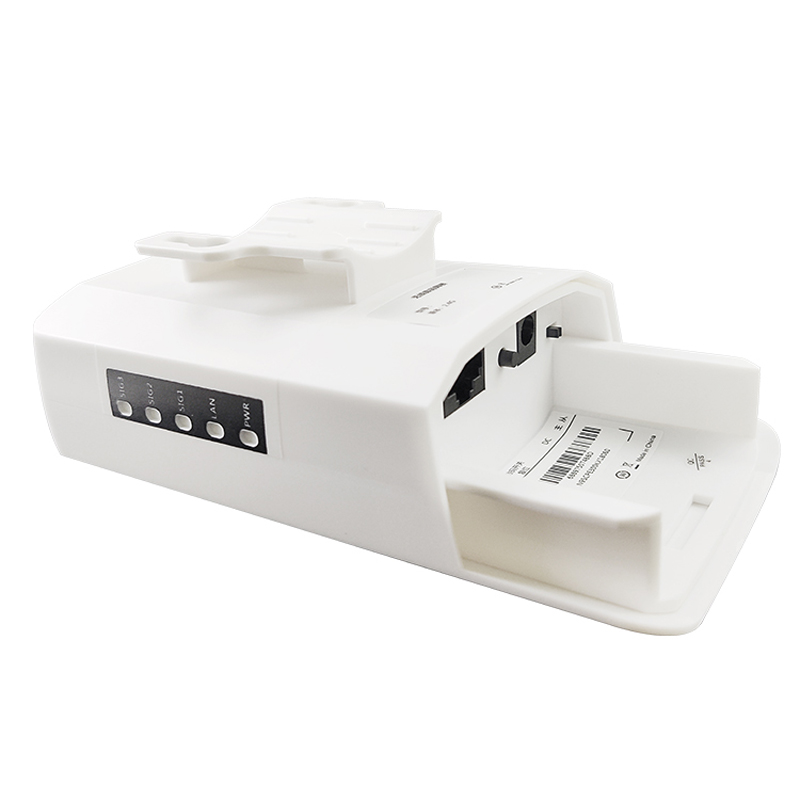

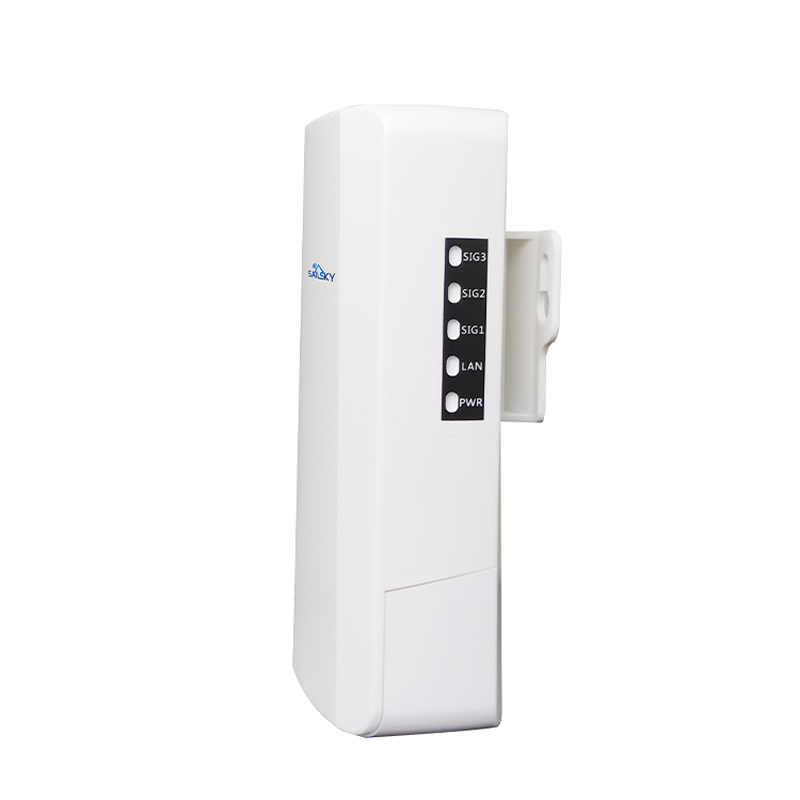

| Status indicator | POWER LED, WAN LED, LAN LED, LINK LED |
Sailsky SY200 11N 300Mbps Outdoor CPE PTP/PTMP 2.4Ghz 1KM Distance CPE
WiFi standard: 11n, 2.4G, 300Mbps high speed, allow 30+ end users faster access;
Support AP+Client mode, with LED display, it is easy to set the operation mode, channel and check the signal strength;

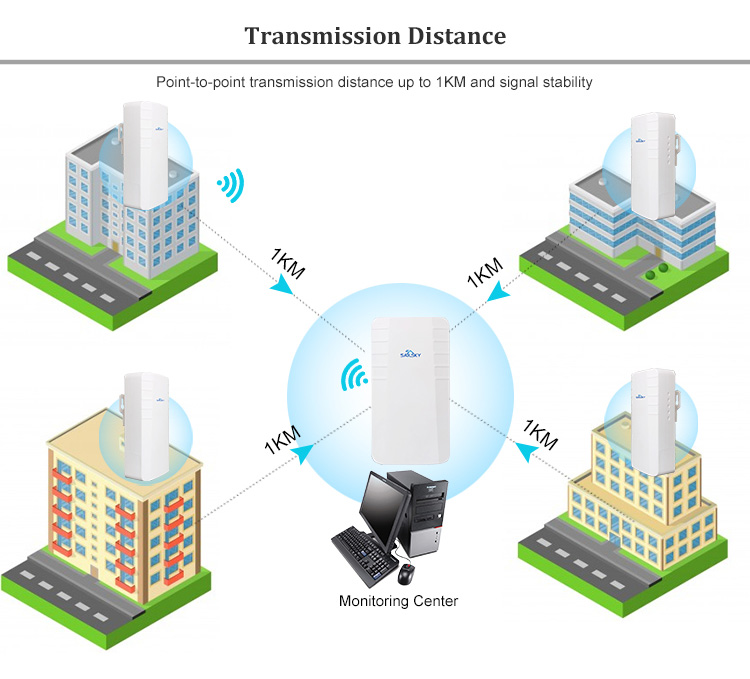

With the 10dBi panel antenna, the transmission distance is up to 1KM;
Support 124V passive POE.
IP65 waterproof level, easy to install in the outdoor environment with a simple LAN cable.
Multiple applications like Park, Village, Wireless monitoring, etc.
