Millisecond-level Seamless Roaming IOT AX1800 WiFi 6 Industrial Access Point BL6000MAX For Coal Mines WiFi Solutions

Model: BL6000MAX AGV Roaming Client Industrial Access Point Pipe Gallery Access Point

3*Gigabit RJ45 3*Gigabit SFP IOT AX1800 WiFi 6 Industrial Access Point BL6000MAX For Coal Mines WiFi Solutions

Main Features:
  • Qualcomm enterprise chips, IPQ6000+QCA8075+QCN5052+QCN5022
  • External power amplifier, high power with detachable antenna, stronger wireless signal with wider coverage;
  • High Speed 1800Mbps,
  • KVR, Seamless roaming switching times ≤50ms,
  • Support WPA3 and 802.1x advance encryption, guard wireless network security all the time;
  • Strong hardware and firmware technical support for PCBA integrated.
  • Tiny Siez:170*131*19mm
  • Instrinsically Safe product hardware design The reliable multi-level power supply protection and port protection design

Share it:

Share it:

Interested?

Welcome to Contact Us for a Quotation!

REQUEST A QUOTE

Ship within 7-10 Working Days for Stocking Products，Customized product should be negotiated

Specifications

Model Intrinsically Safe Explosion Proof WiFi6 Access Point BL6000MAX
CPU IPQ6000+QCA8075+QCN5052+QCN5022
Flash 128MB+16MB
Memory 512MB
WiFi Standard IEEE 802.11b/g/n/ac/ax
Frequency 2.4G+5.8G/1800mbps
Wireless Data Rate 1800Mbps

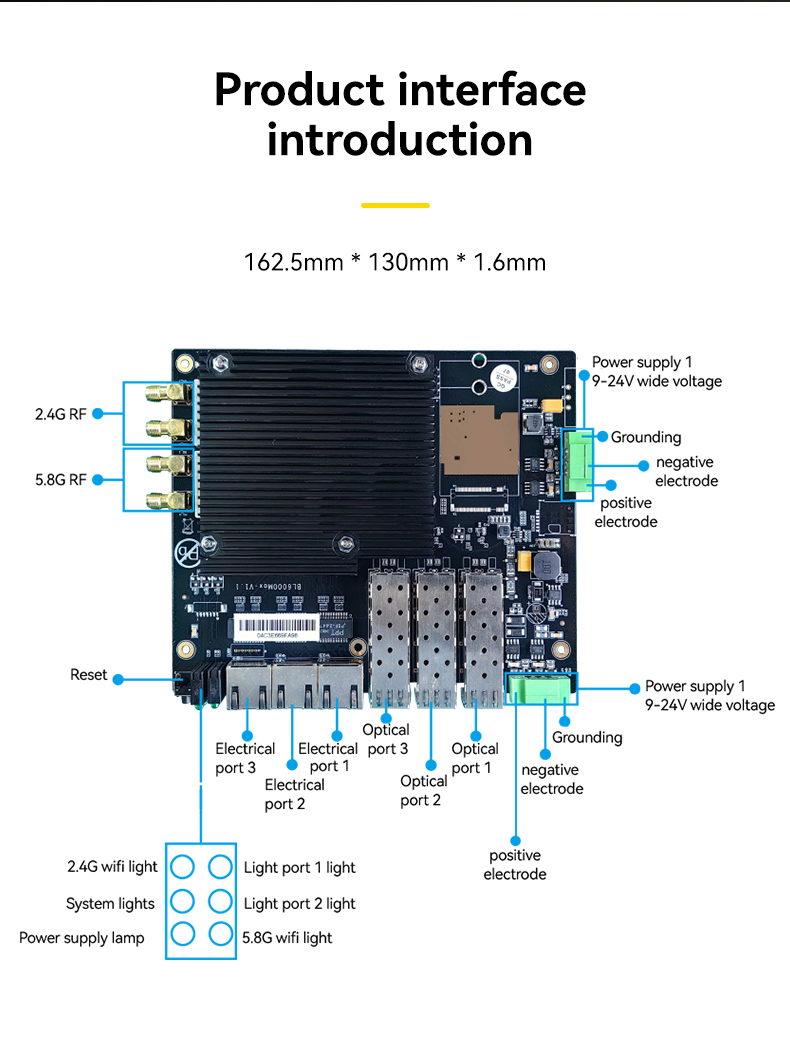

Interface 1*Gigabit WAN,
2*Gigabit LAN,
3*Gigabit SFP port,
1*RS485 communication interface
Button Reset Button
LED Indicator Power supply light, system light, wifi light*2, network port light, optical port light
Antenna 4 SMA antenna interfaces, which can be connected to directional and omnidirectional antennas
POE Power 9-24V Phoenix terminal and DC interface power supply
Power Consumption <23W
Operation Mode AP/Client/Mesh/Router
(KVR roaming protocol , Seamless roaming switching times ≤50ms)
WiFi users 200+
Transmitter and Receiver Distance Directional: 200m radius
Omni: 400m radius
Working temperature Working Temperature:-40ºC~75ºC
Storage temperature: -50ºC~80ºC
Humidity 5%~95%

Download

3*Gigabit RJ45 3*Gigabit SFP IOT AX1800 WiFi 6 Industrial Access Point BL6000MAX For Coal Mines WiFi Solutions

1. General Specifications

Sailsky BL6000MAX is an industrial access point that adheres to the Wi-Fi 6 (802.11ax) standard. It adopts the IPQ6000+QCA8075+QCN5052+QCN5022 solution architecture. This industrial access point supports dual - frequency operation in the 2.4GHz (2×2) and 5.8GHz (2×2) bands, enabling it to provide services simultaneously. The total machine rate can reach up to 1.775Gbps.
It meets the requirements of intrinsic safety, which is crucial for operation in hazardous environments. The power supply of this industrial access point has reliable multi - level protection, and the ports are also protected. This allows it to operate stably in harsh industrial control environments.

2. Performance in Application

The BL6000MAX industrial access point offers excellent wireless coverage and has a strong anti - interference ability. It supports millisecond - level Mesh seamless fast - switching roaming and cascade self - organizing network technology.
In PTP networking, it can achieve a speed of 900M at a distance of 800 meters and has a high - concurrent processing performance of up to 200. It provides a stable communication environment with low latency, high bandwidth, high concurrency, and fast roaming, which is especially suitable for underground coal mine wireless communication.

3. Hardware Features

This industrial access point supports both omnidirectional and directional antennas. It can perform dual RF 2.4GHz + 5GHz simultaneous operation. It is equipped with 2×GE electrical ports (LAN), 1×GE electrical port (WAN), and 3×GE optical ports. There is also an option to expand 5G Internet access.
The Ethernet interface of the BL6000MAX supports 6KV overvoltage protection. It can operate in a wide temperature range from - 40℃ to +75℃. It features a low - power - consumption design, with the full - load power consumption of the WIFI single - machine being ≤11W and that of the expanded 5G Internet being ≤16W.

4. Product Main Features

Wi - Fi 6 (802.11ax) Standard

  • In high - density access scenarios, the Wi - Fi 6 standard implemented in this industrial access point significantly improves user access capacity and bandwidth.
  • It reduces service delays, thus enhancing the wireless transmission experience.
  • By supporting 2.4GHz + 5GHz dual - band MU - MIMO, it doubles the utilization of wireless spectrum resources.
  • With the support of 1024QAM modulation, the data transmission efficiency is increased by 25% compared to 802.11ac.
  • The support for OFDMA technology reduces delays and improves network efficiency.
  • Spatial multiplexing technology is supported to reduce co - frequency interference.
  • The target wake - up time mechanism is supported for energy saving and conflict avoidance.

Mesh Flexible Networking and Fast Seamless Roaming Switching

  • The BL6000MAX industrial access point adopts advanced Mesh self - organizing network technology. This ensures network stability even when devices go offline within the effective antenna coverage.
  • It supports wireless ring network and hybrid networking.
  • It fully supports the 802.11kvr routing node roaming switching technology, enabling millisecond - level high - speed switching. This accelerates wireless network deployment and channel selection.

AP + AC Flexible Management and AP Intelligent Alarm

  • This industrial access point supports flexible management with both large AC and micro AC management modes. This allows for the centralized management of small wireless networks.
  • It has a patented AP intelligent alarm function.
  • A large AC can manage 500 - 5000 mining APs simultaneously.
