Sailsky BL5000X-OD IP67 AX3000 Wi-Fi 6 Access Point for Open Pit and Non-Hazardous Underground Mining
Model: BL5000X-OD Outdoor Access Point Wireless Access Point
IP67 metal-enclosed AX3000 Wi-Fi 6 access point for open-pit mines and non-hazardous underground mining networks.
Main Features:
• AX3000 dual-band Wi-Fi 6 access point for industrial mining networks
• IP67 metal enclosure for dust and water protection
• Designed for open-pit mines and non-hazardous underground mining areas
• Support for 802.11k/v/r roaming with compatible clients and network configuration
• Gigabit Ethernet interfaces

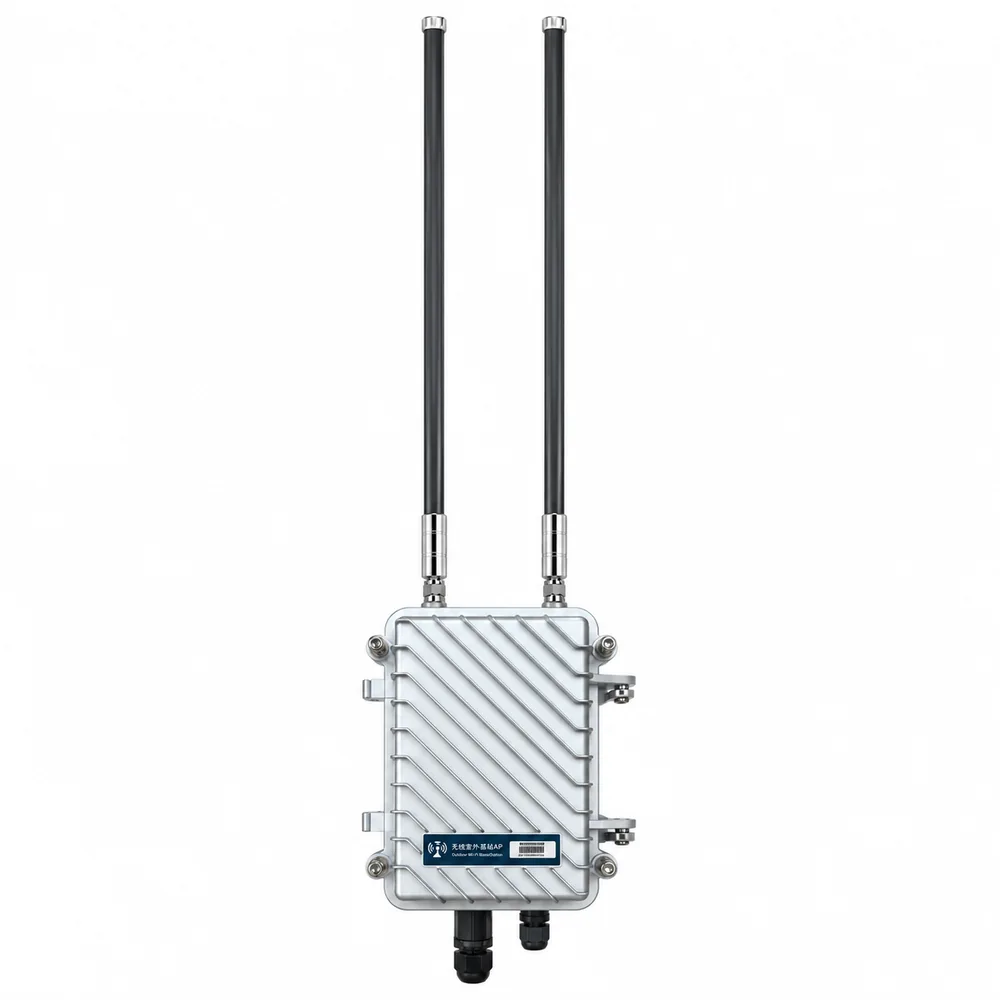

• Directional or omnidirectional antenna options for project-specific coverage design
• 9-24 VDC input for industrial equipment integration
• OEM and ODM support for antennas, mounting, firmware and project configuration
Interested?
Welcome to Contact Us for a Quotation!
Ship within 7-10 Working Days for Stocking Products，Customized product should be negotiated
Specifications
| Model | Outdoor IP67 metal-enclosed industrial Wi-Fi 6 access point BL5000X-OD |
| CPU | IPQ5018 + QCN6102 +QCA8337 |
| Flash | 128MB+16MB |
| Memory | 256MB |
| WiFi Standard | IEEE 802.11b/g/n/ac/ax |
| Frequency | 2.4G: 2400 - 2484MHz
5.8G: 5150 -5850MHz -6900MHZ |
| Wireless Data Rate | 600Mbps @ 2.4GHz; 2400Mbps @5.8GHz |
| Interface | 10/100/1000M WAN*1 1*DC 1 *Phoenix terminal 2*SMA Antenns Port
|
| Button | Reset Button |
| LED Indicator | PWR LED ,SYS LED ,2.4G LED ,5.8G LED |
| Antenna | 2 combined SMA interface,
Directional/Omnidirectional antenna optional |
| POE Power | 9-24V Phoenix terminal and DC interface power supply |
| RF Power | 2PCS antenna: 2.4G≥22 dBm/chain;
5.8G≥21dBm/chain |
| Power Consumption | <14W |
| MTBF | ≥850000H@25ºC |
| Operation Mode |
Router/AP/Mesh |
| WiFi users | 150+ |
| Transmitter and Receiver Distance | Up to 1-3KM meters(Different antennas different distance) |
| Opetion Mode | AP(mesh/repeater)/Client (KVR roaming protocol, Seamless roaming switching times ≤15ms) |
| Working temperature | Working Temperature:-40ºC~70ºC
Storage temperature: -50ºC~80ºC |
| Humidity | 5%~95% |
Integration Note
BL5000X is supplied as an embedded industrial Wi-Fi 6 PCBA for OEM integration.. Its intrinsically safe hardware design supports use in industrial equipment and system designs.
Final system compliance, enclosure protection level, hazardous-location suitability and regional radio approval depend on the finished product configuration and applicable project requirements. Contact Sailsky for project-specific technical documentation and integration support.
Download
Industrial Wi Fi 6 Access Point for Rugged Mining Networks
BL5000X-OD is an AX3000 dual-band Wi-Fi 6 access point in a sealed IP67 metal enclosure. It gives mining operators a rugged wireless option for open-pit sites and non-hazardous underground areas.
The unit uses the BL5000X Wi-Fi 6 platform and supports high-throughput wireless connectivity, 802.11k/v/r roaming, RS485 and RS232 interfaces, dual Gigabit Ethernet, external antennas and 9-24 VDC input. Project teams can select directional or omnidirectional antennas to match coverage targets and installation conditions. Its metal enclosure helps protect the finished device from dust, water and demanding outdoor operating conditions.
Use BL5000X-OD in open-pit mines, gold mines, hard-rock mines and other underground mining areas that do not require explosion-protection certification. Contact Sailsky to confirm antenna selection, mounting, network design and project-specific configuration.

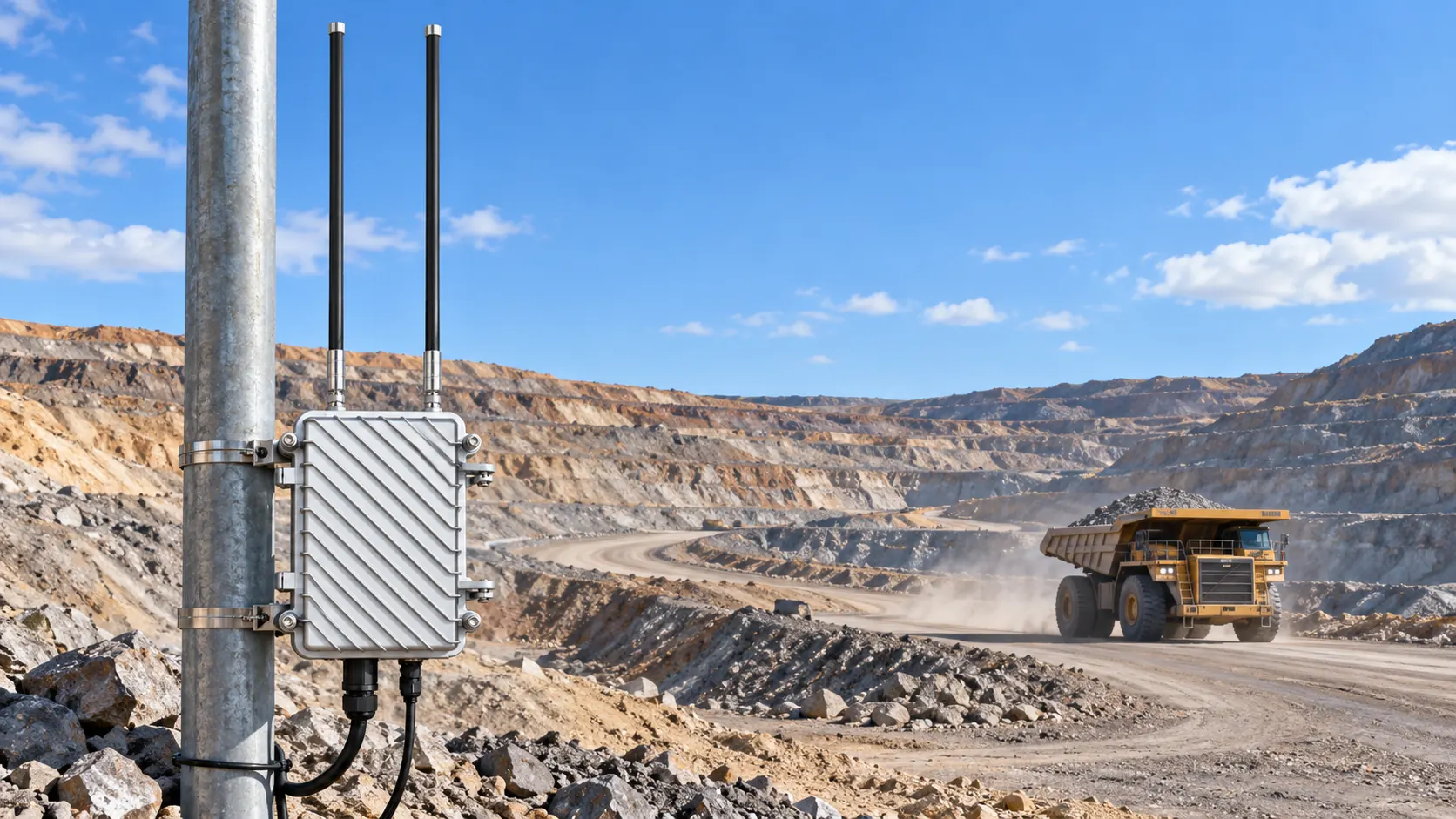

Open Pit Mining Vehicles and Fixed Infrastructure
Mining teams can install BL5000X-OD on open-pit vehicles and fixed infrastructure. In addition, the IP67 metal enclosure helps the equipment handle dust, rain and outdoor exposure. The access point supports reliable data, video and control links for dispatch systems, cameras and connected mining equipment. For a complete deployment approach, see our mine Wi-Fi coverage solution.

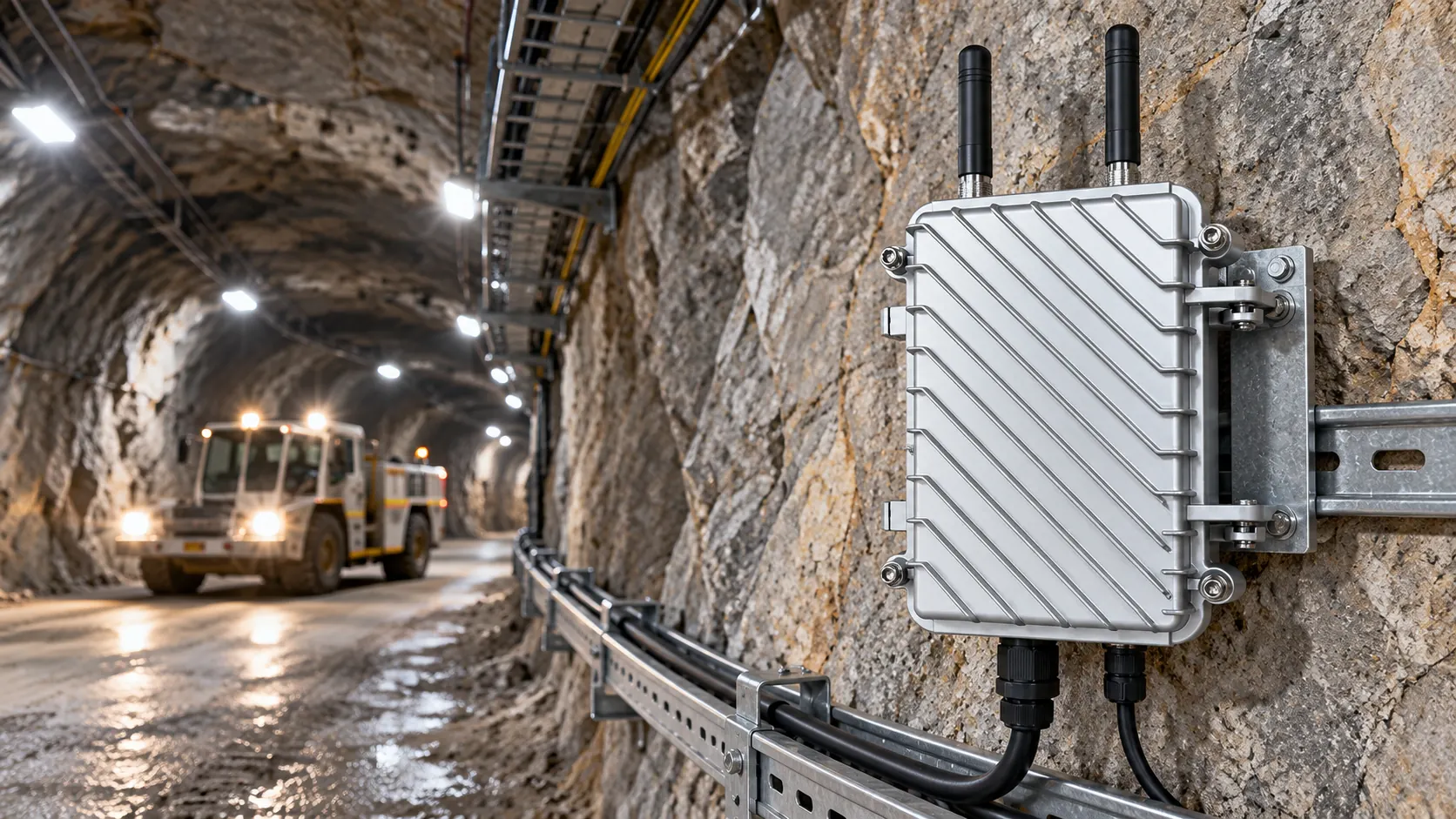

Non Hazardous Underground Gold and Hard Rock Mines
Operators can deploy BL5000X-OD in underground gold mines, hard-rock mines and similar non-hazardous areas. As a result, vehicles, inspection equipment and fixed devices can exchange operational data and video across the mine network. Use this product only where the project does not require explosion-protection certification. See our mine inspection robot wireless solution for a related deployment reference.

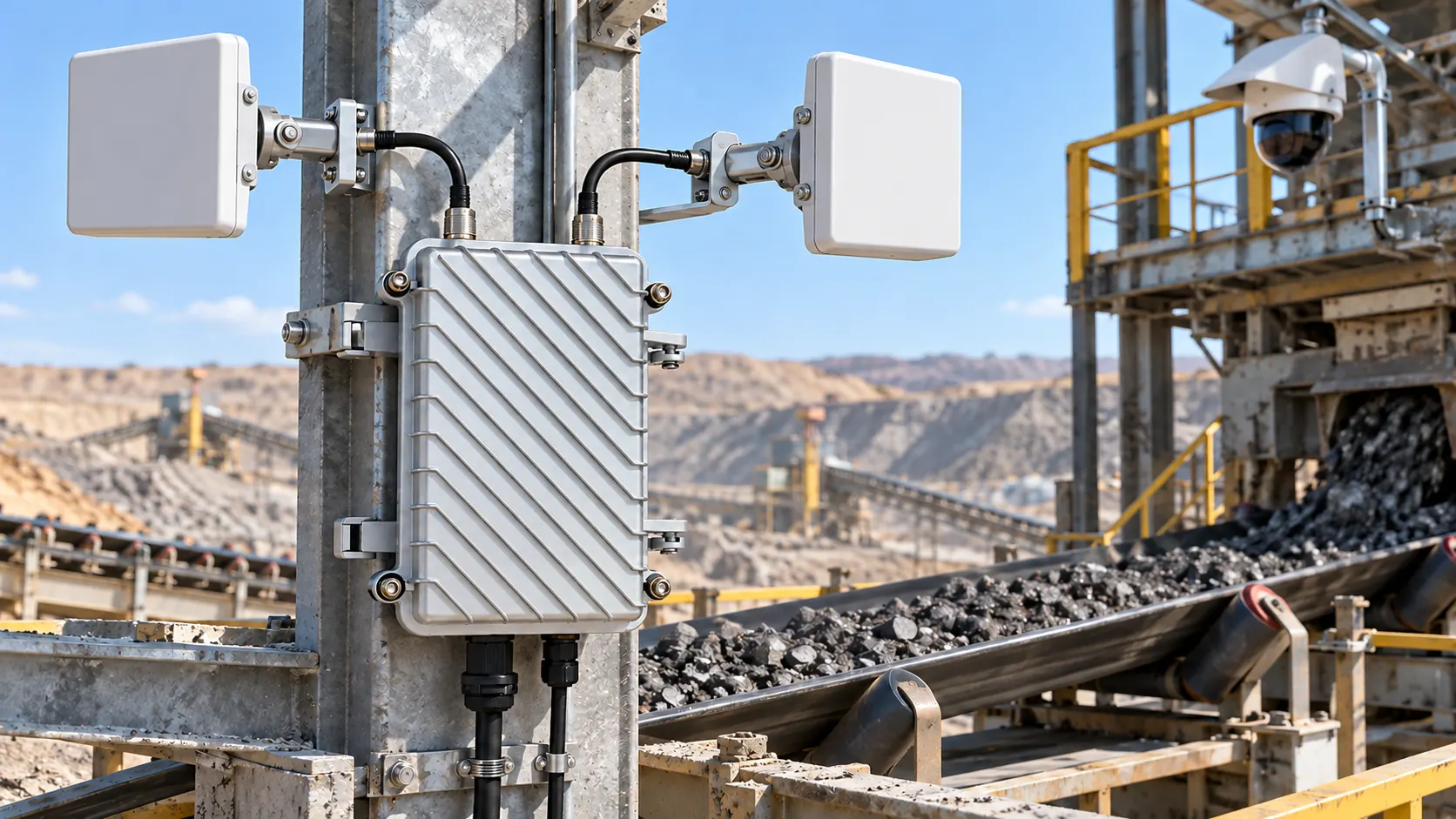

Mining Video and Equipment Communication

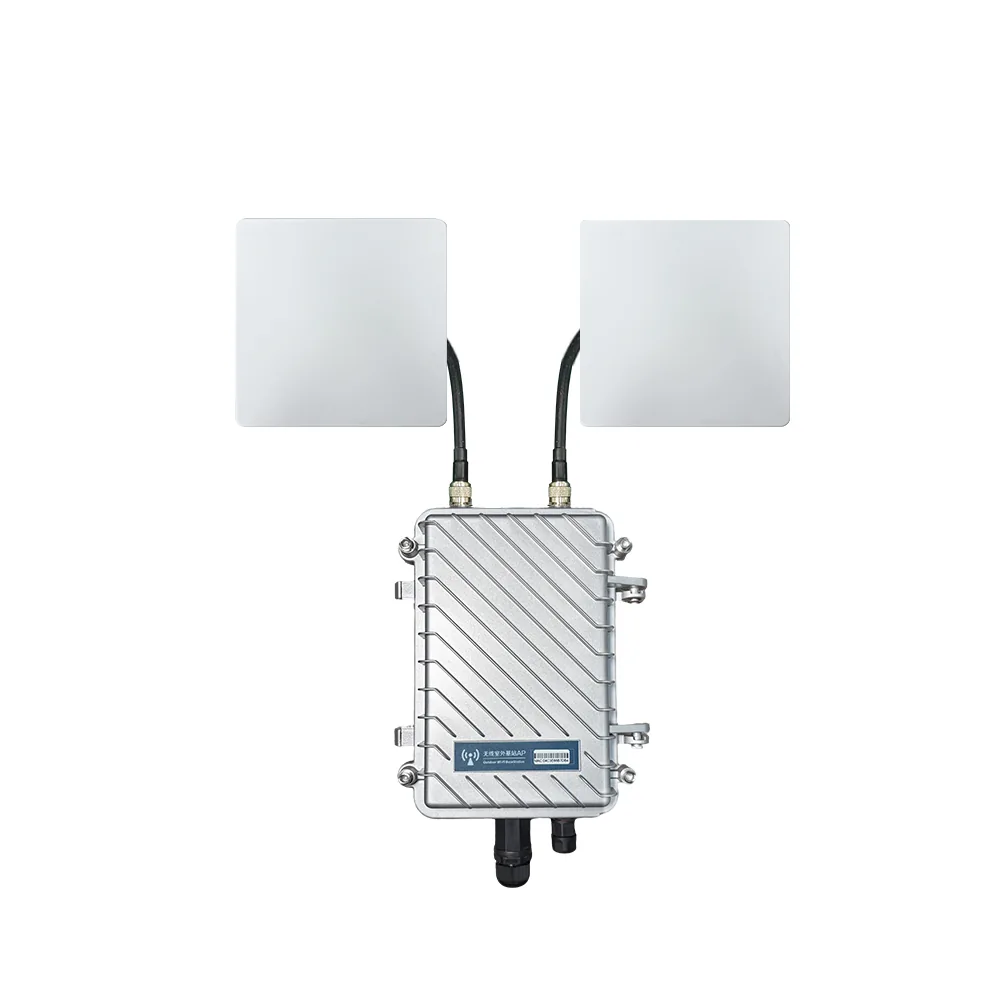

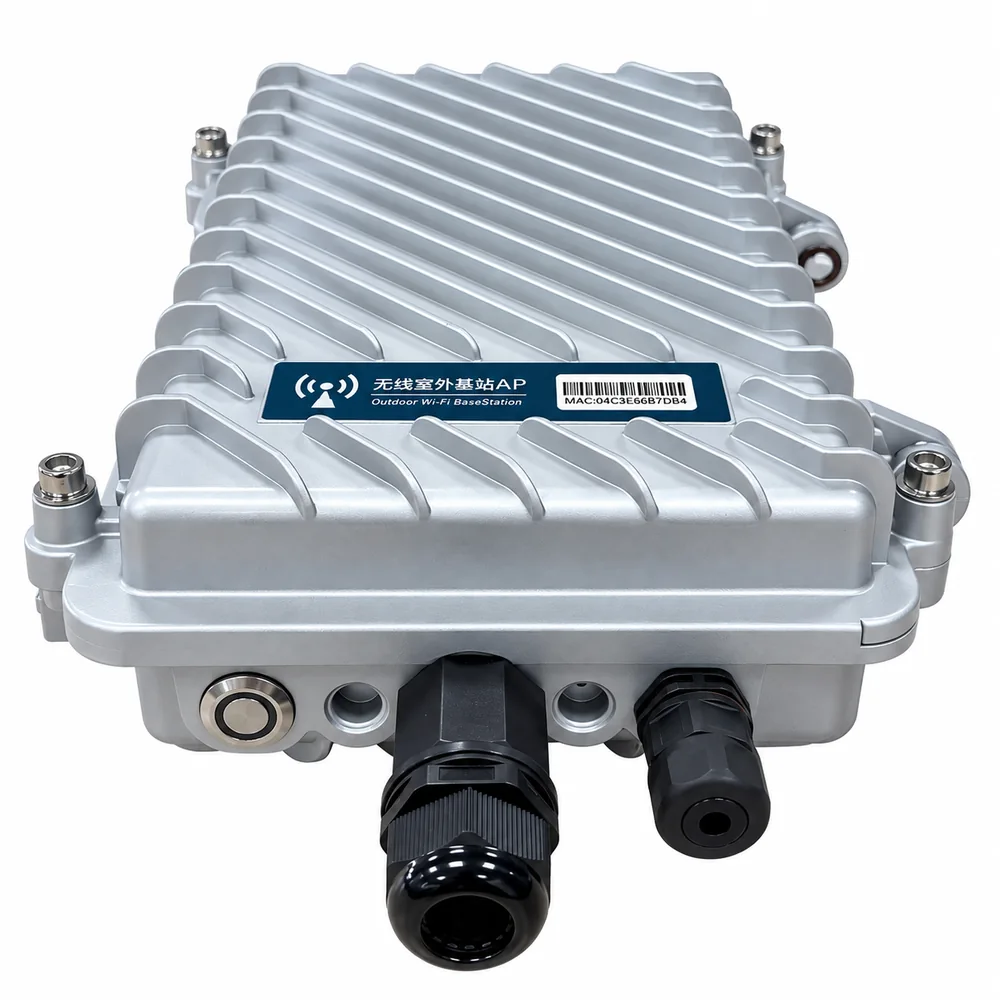

BL5000X-OD supports mining video surveillance, equipment monitoring and industrial communication. For two-direction coverage, installers can connect two directional antennas to the two upper RF ports, with each antenna aimed at its required coverage direction. Meanwhile, the Ethernet and serial interfaces help system integrators connect compatible cameras, controllers and edge devices. The two lower ports remain separate: one connects the network cable and the other connects the power cable. Explore our industrial wireless solutions for related network designs.
OEM and Project Support
Contact Sailsky to discuss antenna selection, mounting options, firmware customization and OEM or ODM requirements for mining wireless projects.
