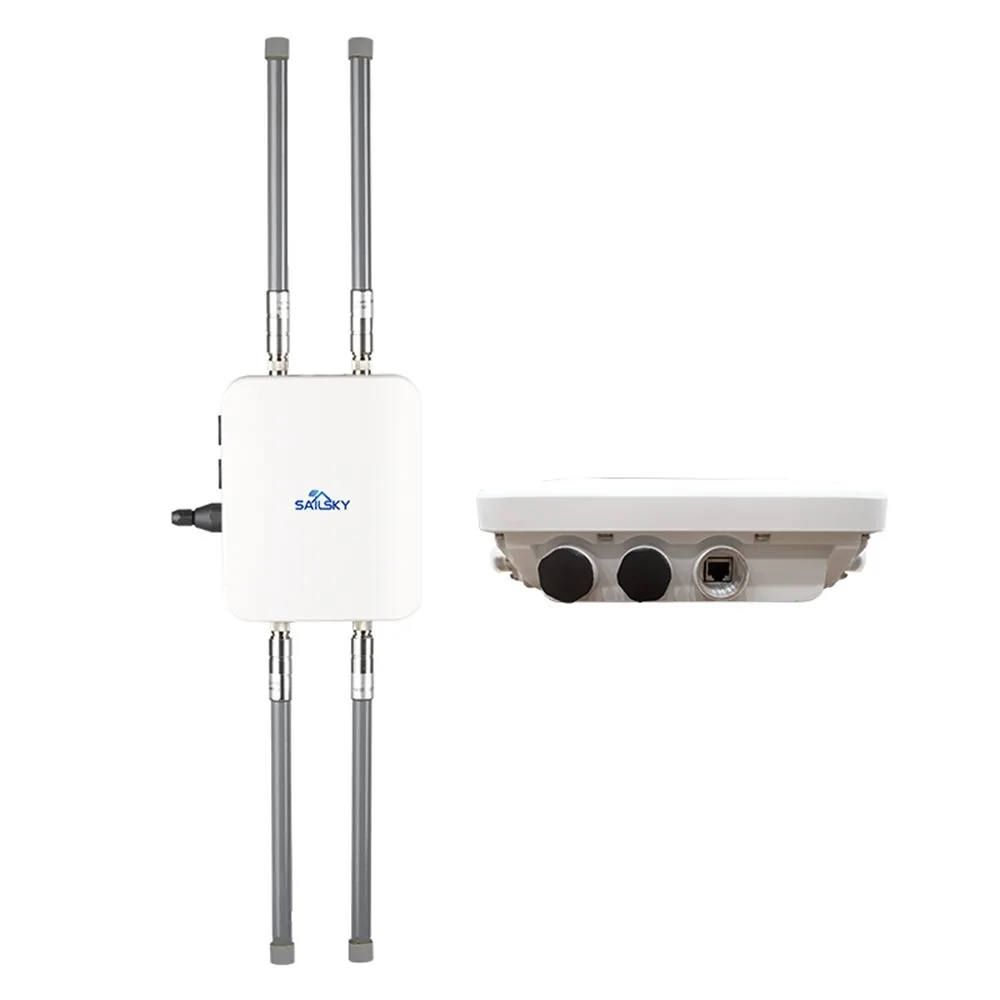

Sailsky BL3000HW-SFP Outdoor AX3000 Wi-Fi 6 Base Station for Smart Port and Industrial Networks
Model: BL3000HW-SFP Outdoor Access Point Wireless Access Point
IP67 outdoor AX3000 Wi-Fi 6 industrial base station with SFP, external antenna options and roaming support for ports and industrial networks.
Main Features:
• AX3000 dual-band Wi-Fi 6 industrial base station
• IP67 outdoor enclosure for demanding industrial sites
• 4 external N-type antenna interfaces
• Directional or omnidirectional antenna options for project coverage design
• SFP and electrical Ethernet network integration; exact port configuration to be confirmed
• Router, AP and Mesh operating modes
• 802.11k/v/r roaming support with compatible clients and configuration
• SNMP, VLAN and ring-network functions
• OEM and ODM support for antennas, mounting and project configuration
Interested?
Welcome to Contact Us for a Quotation!
Ship within 7-10 Working Days for Stocking Products，Customized product should be negotiated
Specifications
| Model | BL3000HW-SFP |
| Product Form | IP67 outdoor Wi-Fi 6 industrial base station |
| Chipset | IPQ5018+6102+8337 |
| Memory and Flash | 256MB memory; 128MB + 16MB flash |
| Wireless Standard | IEEE 802.11a/b/g/n/ac/ax |
| Frequency Band | 2.4 GHz: 2.412-2.4835 GHz; 5 GHz: 5.18-5.825 GHz |
| Wireless Data Rate | AX3000: up to 575 Mbps at 2.4 GHz and 2400 Mbps at 5 GHz |
| Enthernet Interfaces | 1 * 10/100/1000Mbps LAN/WAN (Support 48V Poe) 1 * 10/100/1000Mbps SFP/ 1*2.5G Electrical port(Optional) 1*reset portm |
| Antennas | 4 external N-type antenna interfaces; directional or omnidirectional antennas optional by project |
| Power supply | POE48V/DC:9-36V(optional) |
| RF powre | Up to 27 dBm; actual value depends on band, antenna and regional regulation |
| Power Consumption | 15 W |
| Operation Modes | Router, AP and Mesh |
| Working temperature | -40~75℃ |
| Storage temperature | -40~85℃ |
| Relative humidity | 5%~95% (no condensation) |
| Mechanical or Environmental Rating | IP67 outdoor enclosure; wall mounting |
BL3000HW-SFP is an outdoor industrial Wi-Fi 6 base station for fixed infrastructure and project network integration. Directional or omnidirectional antennas can be selected according to the required coverage pattern, mounting position and local radio requirements.
Final interface configuration, power method, radio approval and installation suitability must be confirmed against the project design and applicable local requirements. Contact Sailsky for technical documentation and antenna selection support.
Download
Outdoor AX3000 Wi Fi 6 Base Station for Industrial Networks
BL3000HW-SFP is an IP67 outdoor AX3000 Wi-Fi 6 industrial base station for ports, industrial sites and long-route wireless networks. It combines dual-band 2x2 Wi-Fi 6, external antenna connections and fibre or Ethernet network integration for reliable industrial data, video and control communications.
The base station supports Router, AP and Mesh operating modes. It also supports 802.11k/v/r roaming with compatible clients and network configuration. Four external antenna interfaces allow project teams to select directional antennas for long, narrow coverage paths or omnidirectional antennas for wider-area coverage.

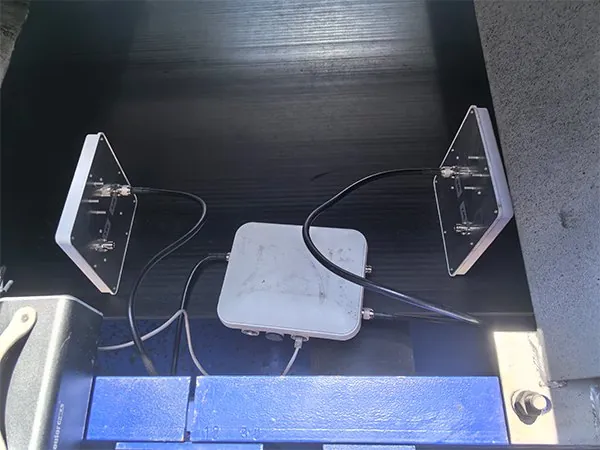

Caofeidian Port Directional Antenna Deployment
At Caofeidian Port, Sailsky deployed BL3000HW-SFP industrial Wi-Fi 6 access points along the coal conveyor route. Directional antennas focused coverage along the travel path, while fibre links connected the access points to the port backbone. This design supported inspection robot video and equipment data transmission across the conveyor area. Explore our smart port wireless network for inspection robots at Caofeidian Port.
Antenna Selection for Project Coverage
Use directional antennas when a project requires focused coverage along a conveyor, roadway, jetty or other long and narrow route. Use omnidirectional antennas when the site needs broader local coverage around equipment or working areas. Sailsky can recommend the antenna type, mounting position and network layout for the final deployment.
Industrial Wireless Applications
BL3000HW-SFP suits smart port conveyor systems, industrial video surveillance, wind power sites, non-coal mining, chemical facilities and mobile inspection projects. Its IP67 enclosure, external antenna options and industrial network functions help engineers build wireless access layers for demanding outdoor environments.
For product configuration, antenna selection and OEM or ODM requirements, contact Sailsky.
