Sailsky BL70DG DIN Rail 2.4 GHz Industrial Wireless Access Point for Control Cabinets
Model: BL70DG Electricity Access Point Industrial Access Point
DIN rail 2.4 GHz industrial wireless access point with QCA9531, dual SMA antenna ports, 9-24 VDC input, fast roaming and a metal housing for control-cabinet integration.
• Qualcomm QCA9531, 2.4 GHz 802.11b/g/n MIMO, up to 300 Mbps
• 128 MB DDR2 RAM and 16 MB flash

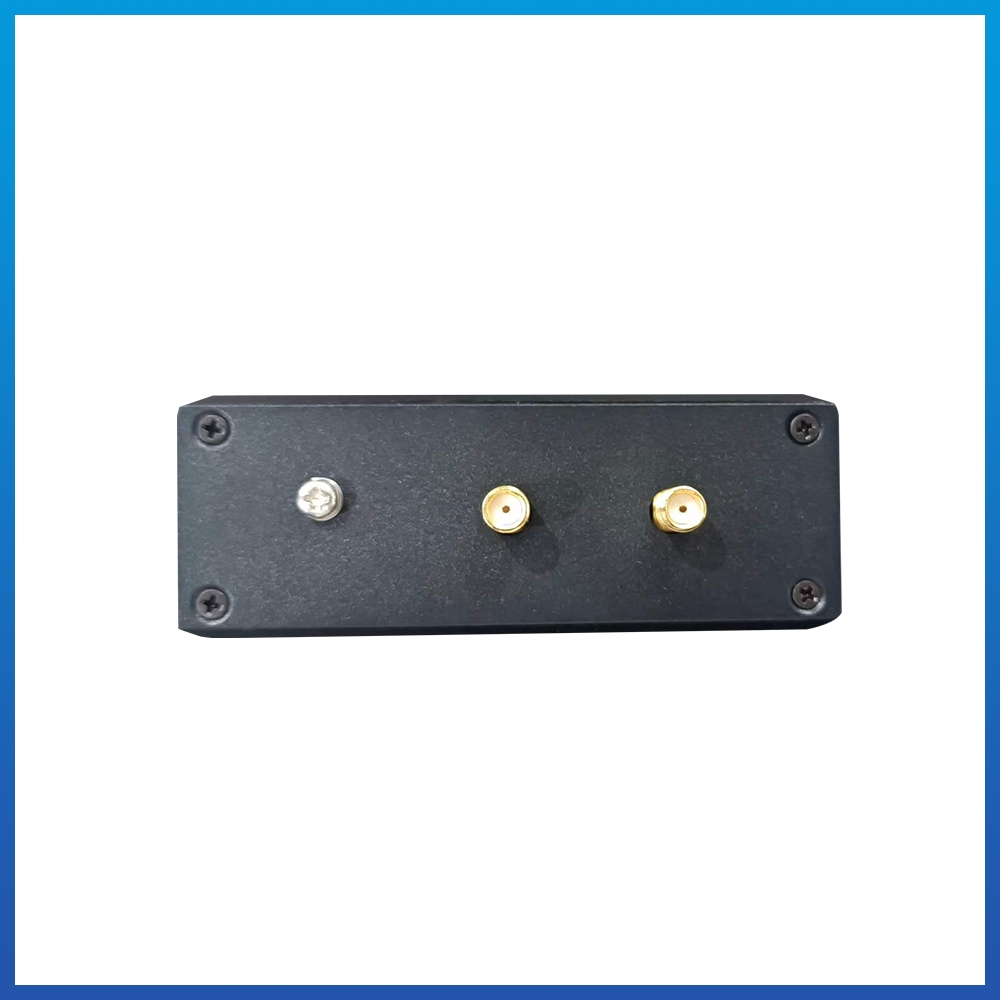

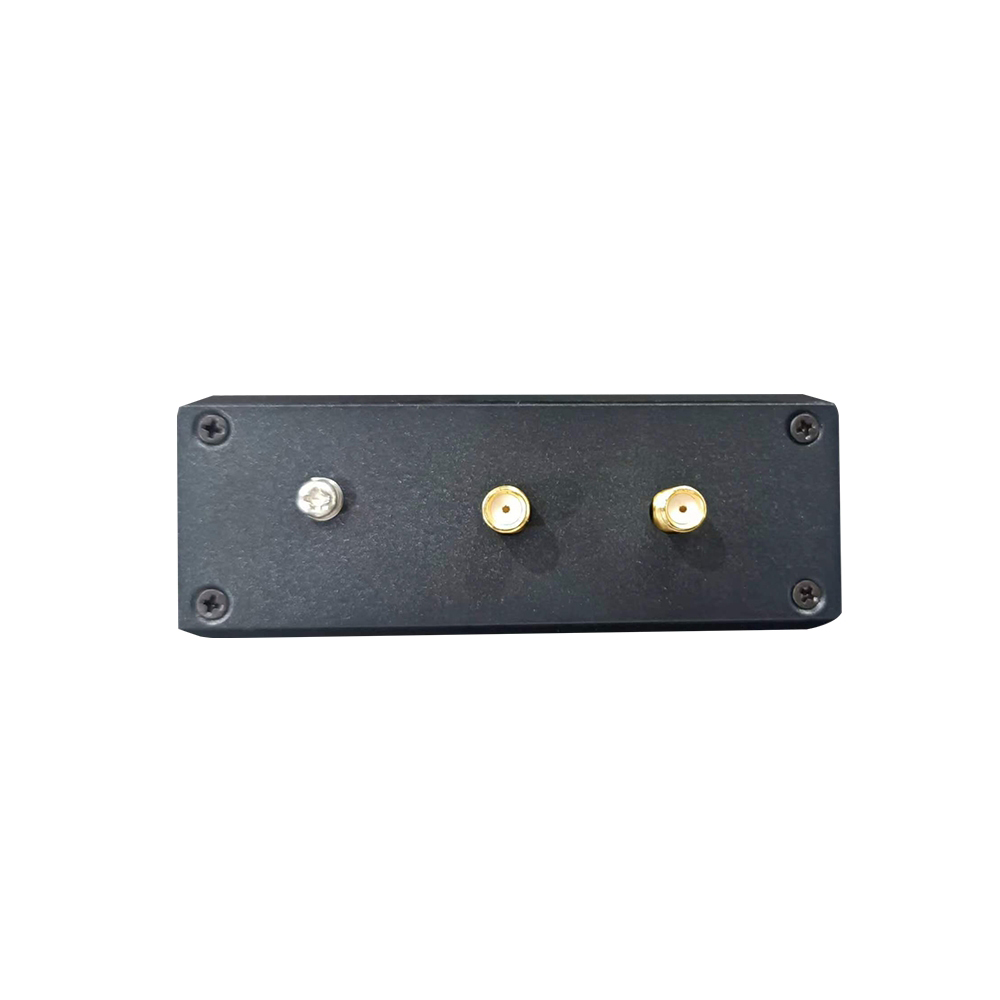

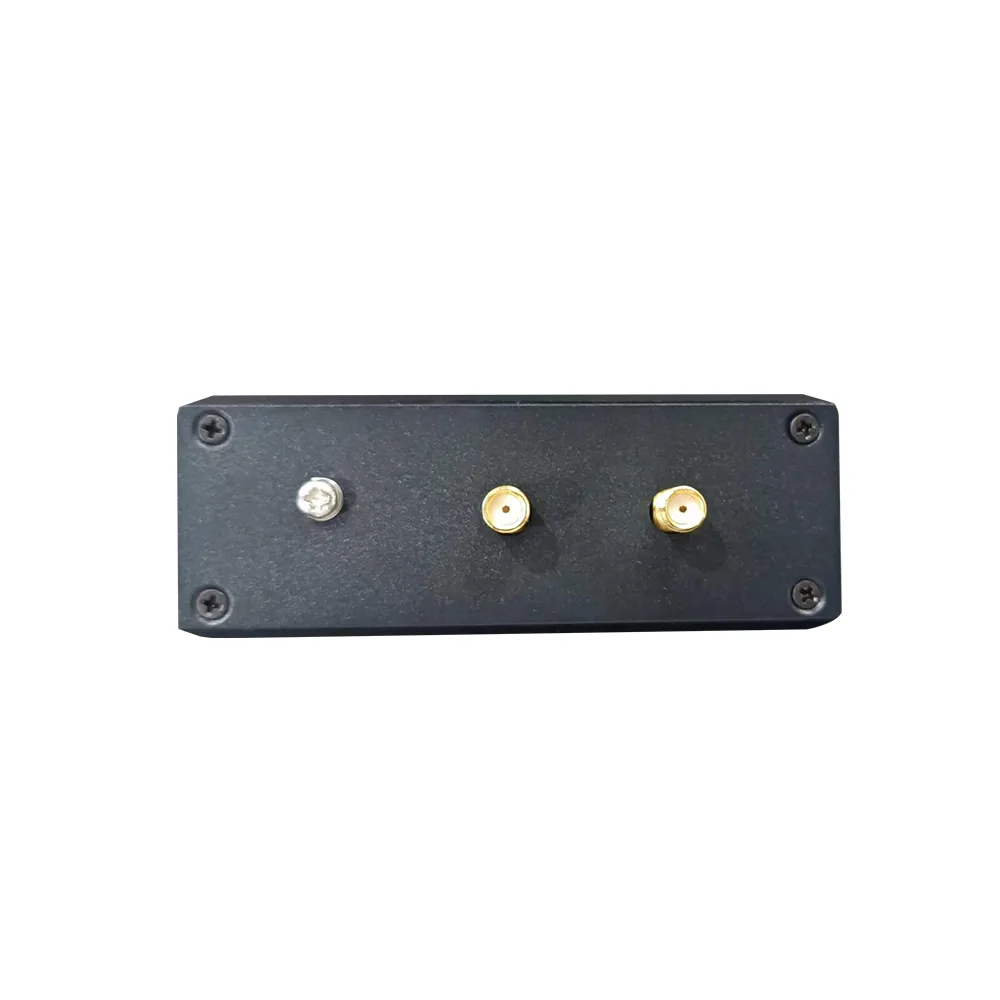

• 2 x SMA external antenna interfaces
• 1 x LAN/PoE and 1 x WAN 10/100 Mbps Ethernet interface
• 9-24 VDC Phoenix terminal input; power consumption below 9 W
• Router, AP and Repeater modes with K/V/R fast roaming
• VLAN by SSID and AC cross-layer management

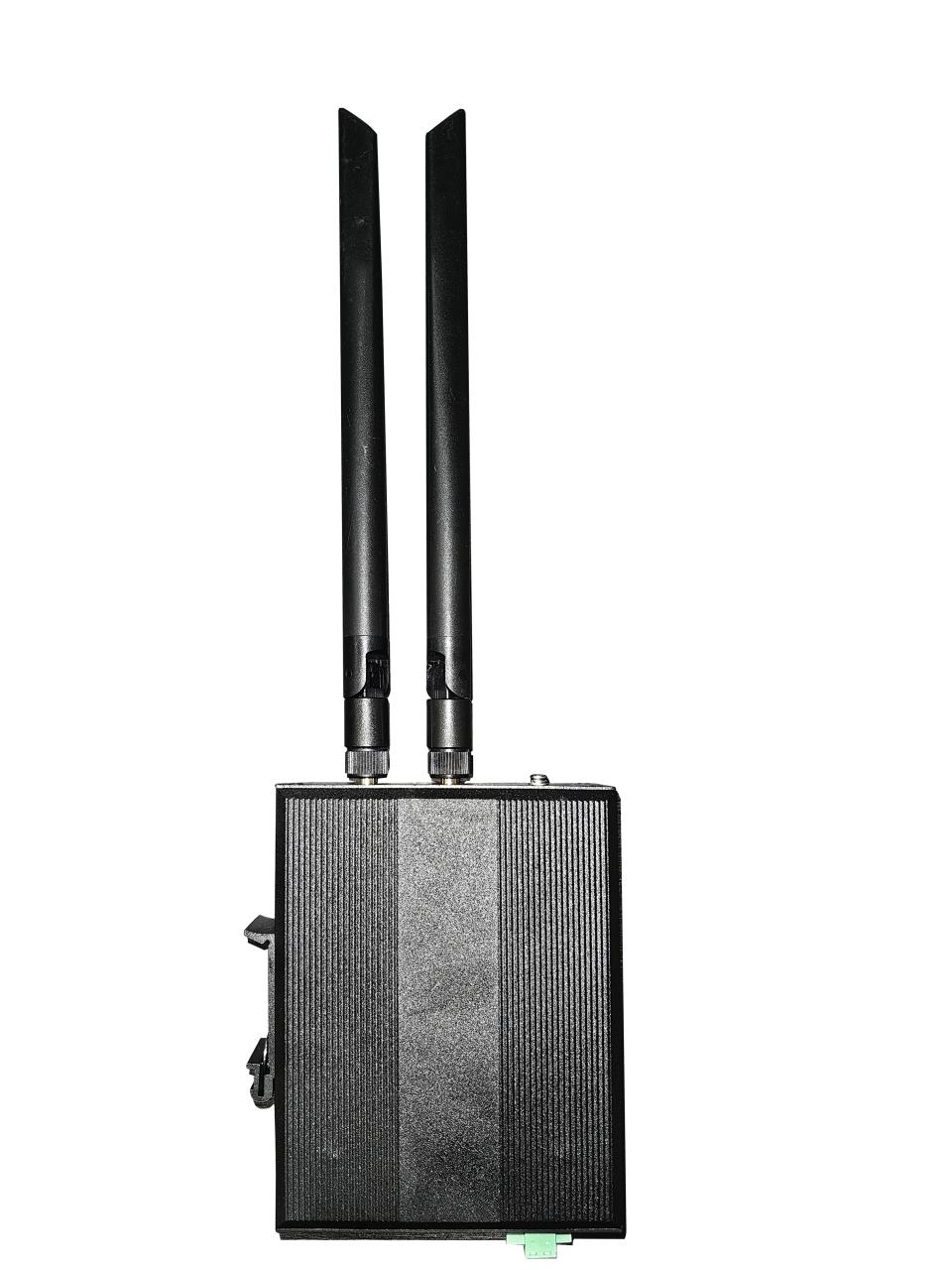

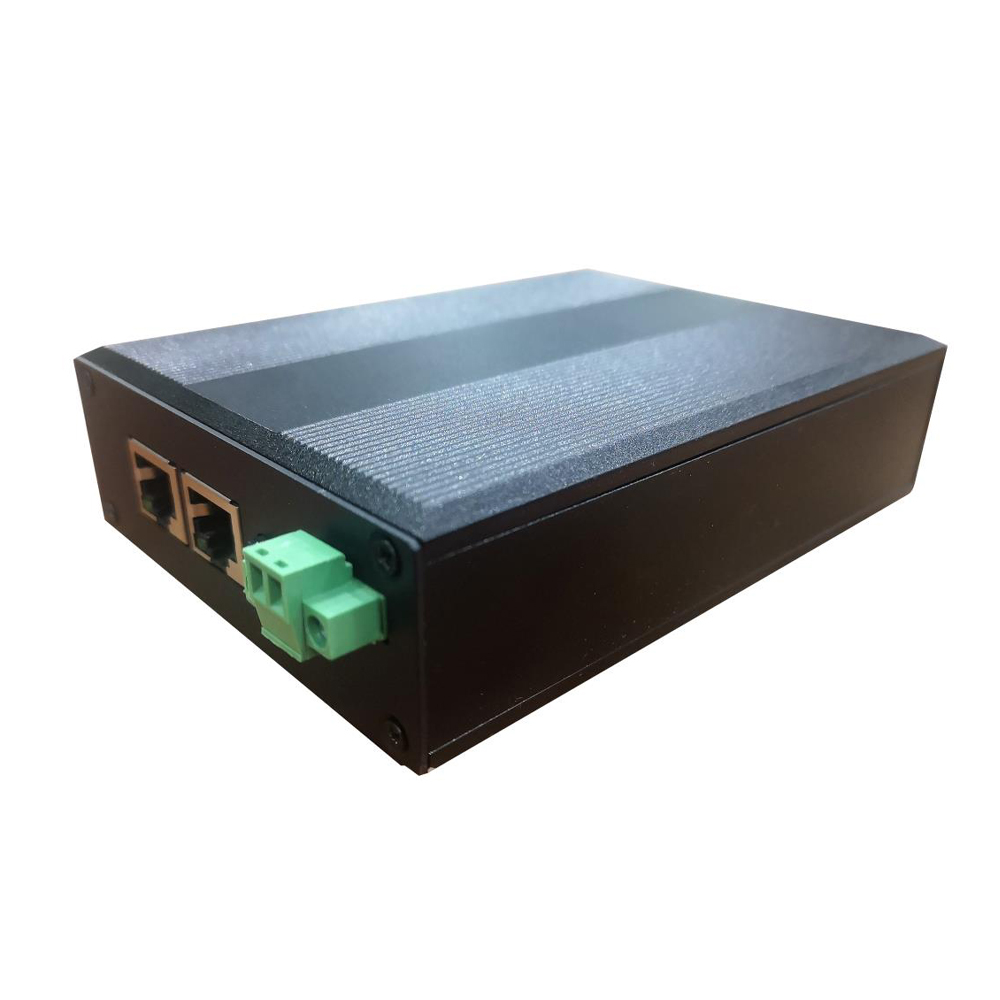

• DIN rail-mount metal housing for industrial control cabinets and equipment integration
• Hardware design meets intrinsic safety requirements; certification status must be confirmed project by project
Interested?
Welcome to Contact Us for a Quotation!
Ship within 7-10 Working Days for Stocking Products，Customized product should be negotiated
Specifications
| Model | Din rail WiFi4 Access Point BL70DG |
| CPU | Qualcomm QCA9531 |
| Flash | 128MB DDR2 RAM |
| Memory | 16MB |
| WiFi Standard | IEEE 802.11b/g/n |
| Frequency | 2.4G/300mbps |
| Wireless Data Rate | 300Mbps |

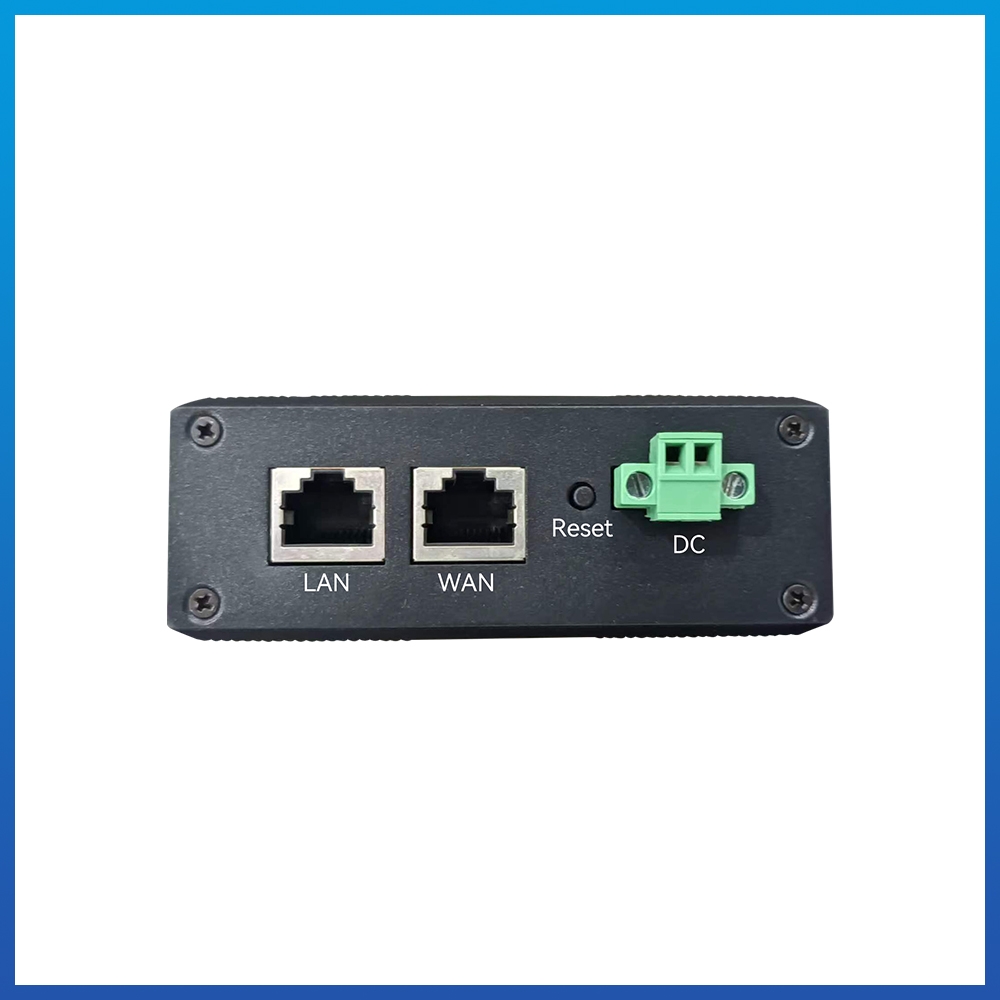

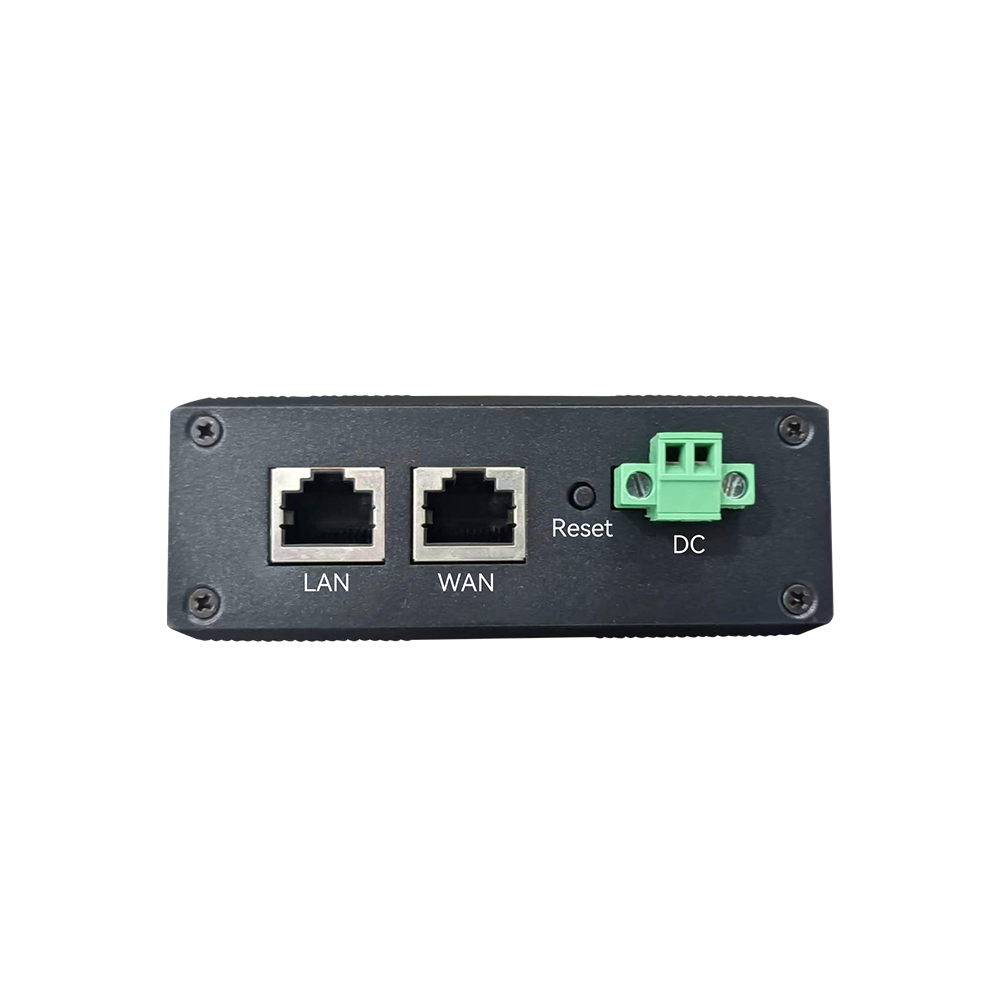

| Interface | 1 * 10/100Mbps WAN 1 * 10/100Mbps LAN 1*Reset Button 1 *DC Phoenix terminal |
| Button | Reset Button |
| LED Indicator | W/LAN light,LAN light,System light,Power supply light, |
| Antenna | 2*SMA antenna interfaces |
| POE Power | 9-24V Phoenix terminal and DC interface power supply |
| Power Consumption | <9W |
| Operation Mode | AP/Router/Repeater |
| WiFi users | 64+ |
| Transmitter and Receiver Distance | 100m radius |
| Working temperature | Working Temperature:-40ºC~55ºC Storage temperature: -40ºC~70ºC |
| Humidity | 5%~95% |
Equipment builders use BL70DG for control-cabinet and equipment-integration projects that require DIN rail installation, compact 2.4 GHz wireless connectivity, external antenna options and 9-24 VDC terminal power input. In addition, its metal DIN rail-mount housing supports orderly installation inside compatible industrial control cabinets and equipment enclosures.
The final antenna, power-input, mounting and compliance configuration must be confirmed for the specific project. For regulated hazardous locations, verify all required system-level approvals before deployment.
Download
DIN Rail Industrial Wireless Access Point for Control Cabinets
First, BL70DG is a compact DIN rail industrial wireless access point for control cabinets, equipment enclosures and fixed industrial networks. Additionally, BL70DG uses the Qualcomm QCA9531 platform. It combines 2.4 GHz 802.11b/g/n MIMO technology with 128 MB DDR2 memory and 16 MB flash.
The DIN rail form factor helps equipment builders install BL70DG neatly inside compatible industrial control cabinets. In addition, BL70DG provides two SMA antenna interfaces and 10/100 Mbps Ethernet interfaces. The 9-24 VDC Phoenix terminal supports industrial power integration.

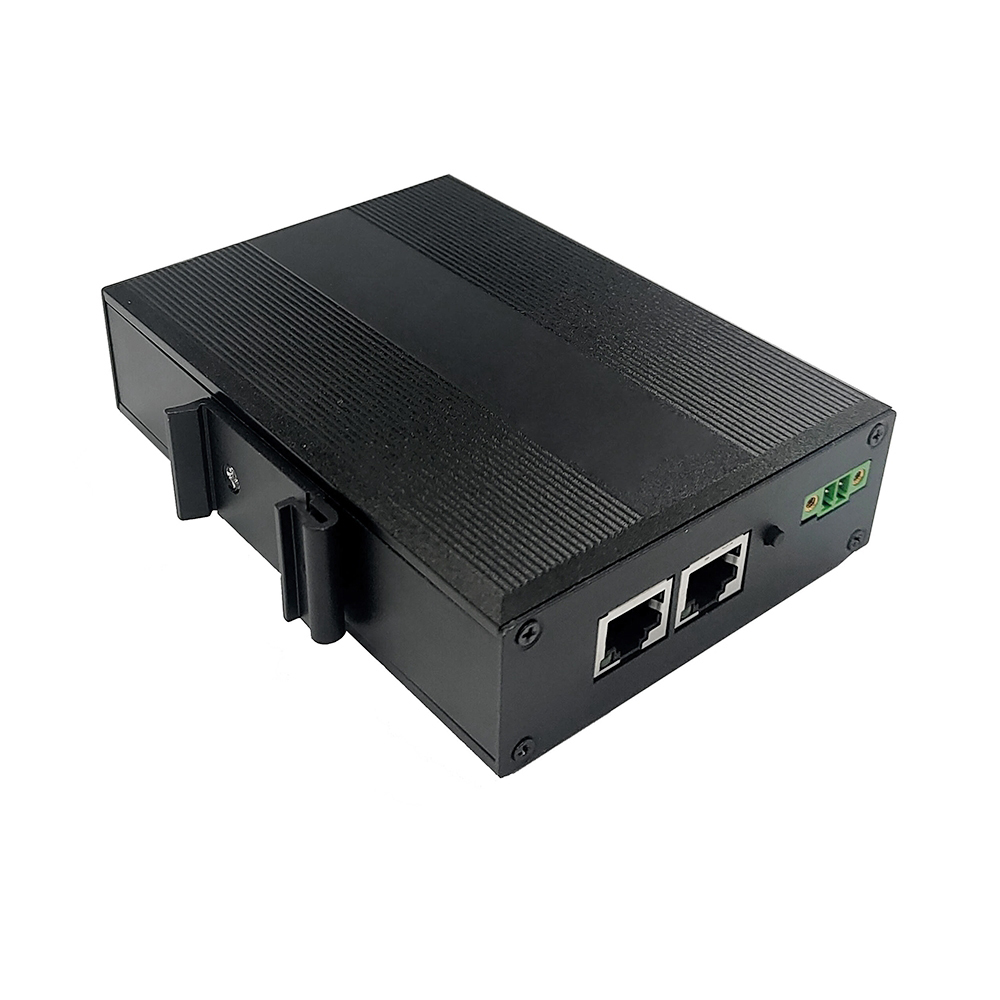

DIN Rail Mounting for Industrial Control Systems
Moreover, BL70DG supports Router, AP and Repeater modes, K/V/R fast roaming, VLAN classification by SSID and AC cross-layer management. It supports up to 64 wireless users where compact DIN rail installation, stable 2.4 GHz connectivity and maintainable networking are important.
Therefore, the multi-level power and port protection design helps BL70DG operate reliably in demanding industrial equipment environments. For projects involving regulated hazardous areas, confirm the required certification and system compliance before deployment.
Industrial Equipment and Remote Monitoring Connectivity
For example, equipment builders can install BL70DG on a DIN rail inside inspection systems and industrial control boxes. They can also use it in cameras and fixed monitoring cabinets. As a result, compatible industrial systems can exchange operational status, video and control information wirelessly. Explore our mine inspection robot wireless solution for a related deployment approach.
Antenna Selection and OEM Integration
Finally, select external directional antennas for focused links. Alternatively, choose suitable antennas for wider local coverage. Contact Sailsky to discuss DIN rail integration, antenna selection, power input, firmware customization and OEM or ODM requirements. Explore our industrial wireless solutions for related network designs.
