The Industry’s First WiFi6 Triple-Band Frequency-Hopping Mesh Base Station – A Breakthrough for Mining Communications
Why Industrial WiFi6 is Essential for Modern Mining
Compared to WiFi5, which easily meets intrinsic safety (IS) requirements with a 12V 1A power supply, WiFi6 poses greater challenges due to its higher power consumption (up to 12V 1.6A). Many manufacturers struggle to meet explosion-proof (Ex) and single-power supply standards, often downgrading performance or using consumer-grade WiFi5 in industrial settings—compromising safety and reliability.

With increasing demands for smart mining, WiFi6 + 5G has become the standard. While 5G can be explosion-proof, applying the same approach to WiFi6 would reduce efficiency and limit deployment flexibility. Thus, developing a true industrial-grade WiFi6 solution is critical.

Introducing the Sailsky First Industrial WiFi6 Triple-Band Mesh Base Station
Powered by Qualcomm’s industrial-grade IPQ4029 chip, this breakthrough solution supports 5G1/5G2/2.4G tri-band operation, delivering 2200Mbps combined speeds, wireless self-backhaul (1-5km range), and zero-cable deployment—perfect for harsh mining environments.

Key Features & Benefits
- Smart Mesh Networking – Automatically detects nearby base stations, forming interference-free wireless links with intelligent channel selection.
- Self-Healing & Optimization – Uses L2 distributed intelligence to adjust links based on signal strength, latency, and hop count.
- Long-Range Wireless Backhaul – No fiber/cables needed; 300-600m wireless bridging via 5.8GHz WiFi (866Mbps).
- Gigabit-Class Speeds – 300Mbps client access with ultra-low bandwidth loss (<3% per hop).
- Hybrid Wired/Wireless Uplink – Supports Ethernet, 2.4G/5.8G WiFi, and automatic failover.
- Multi-Hop Low-Latency – 6-10 hops with <15ms latency, maintaining 300Mbps+ throughput.
- Seamless Roaming – Uniform SSID across all base stations for uninterrupted mobility.

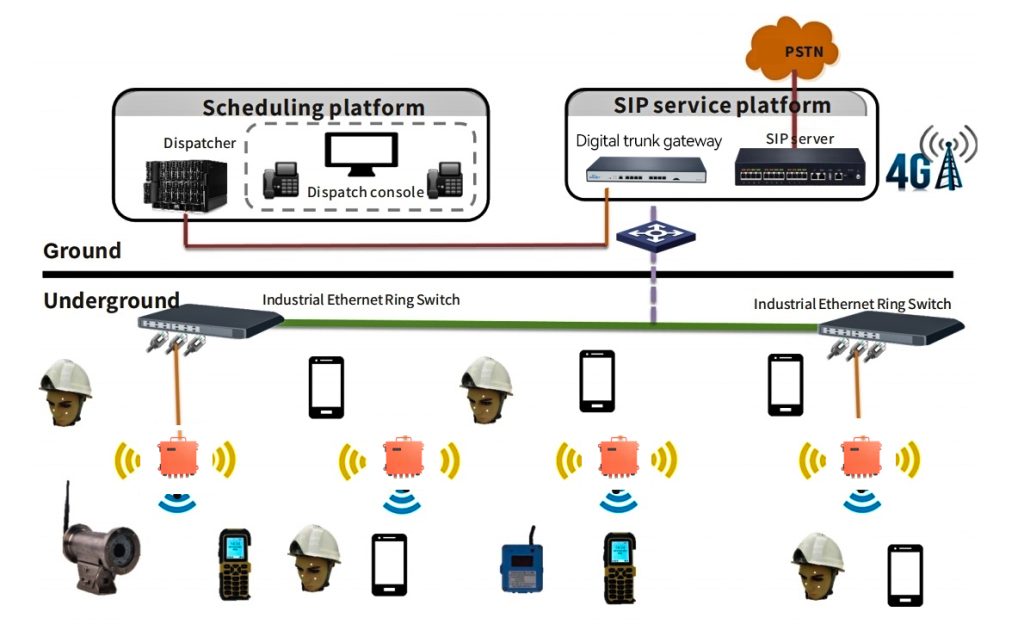

- Multi-Network Convergence – Integrates 4G, VoIP, and legacy systems without servers.
- Open Standards Compliance – Full 802.11ax (WiFi6) support for plug-and-play IP device connectivity.
Solving Mining’s Biggest Challenges
- Eliminates interference with dynamic frequency hopping.
- Reduces deployment costs with cable-free, self-configuring nodes.
- Ensures reliability with automatic failover and <3% bandwidth degradation per hop.
- Future-proofs infrastructure for IoT, HD video, and real-time data.

Conclusion
This industrial WiFi6 base station sets a new benchmark for smart mining communications, combining intrinsic safety, high performance, and flexible deployment—where traditional WiFi5 and explosion-proof solutions fall short.
Upgrade to WiFi6 today and unlock the future of industrial wireless!
