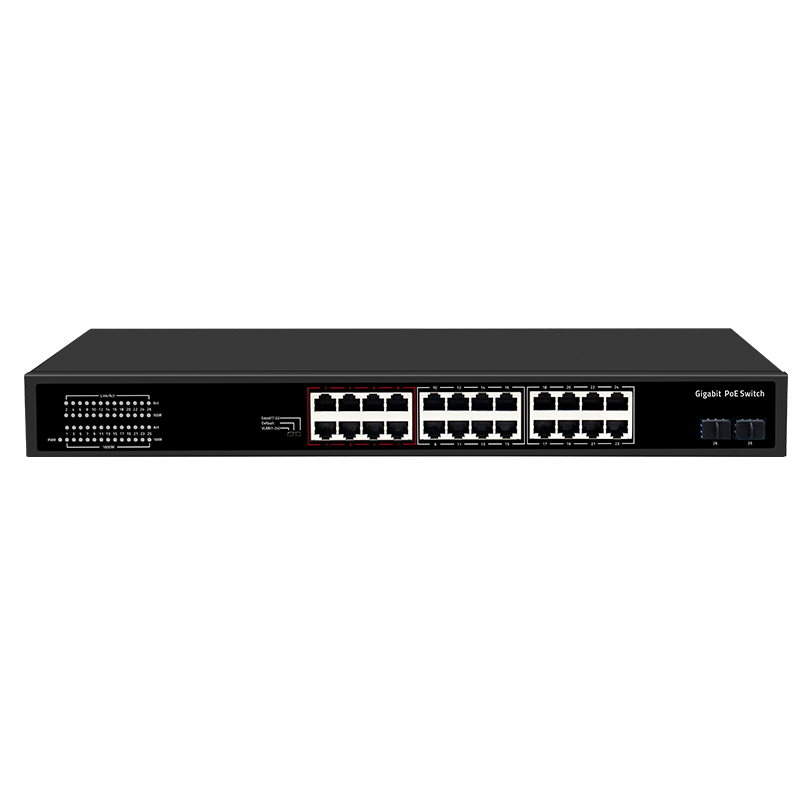

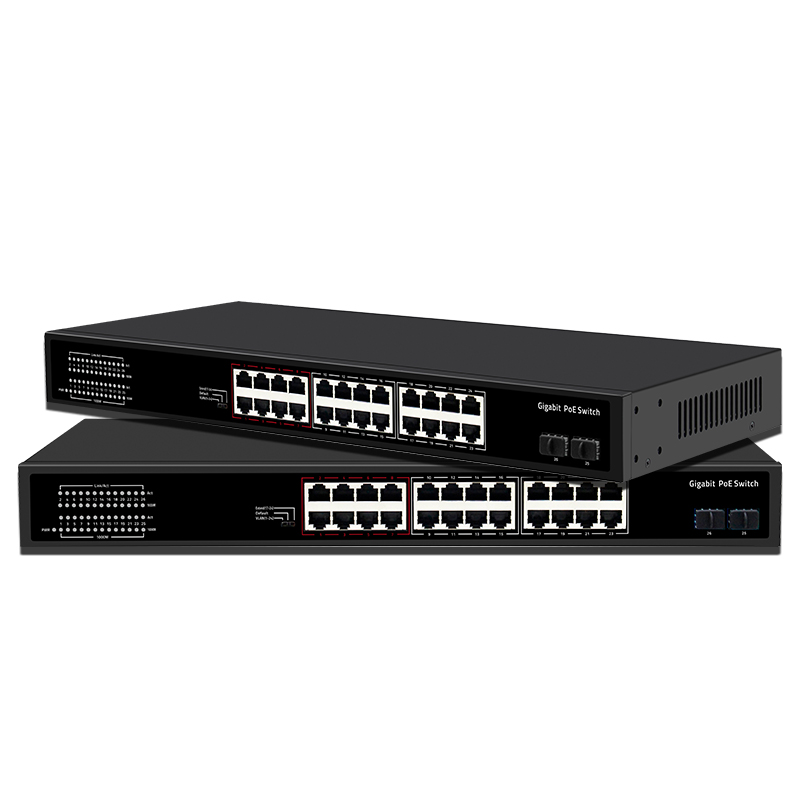

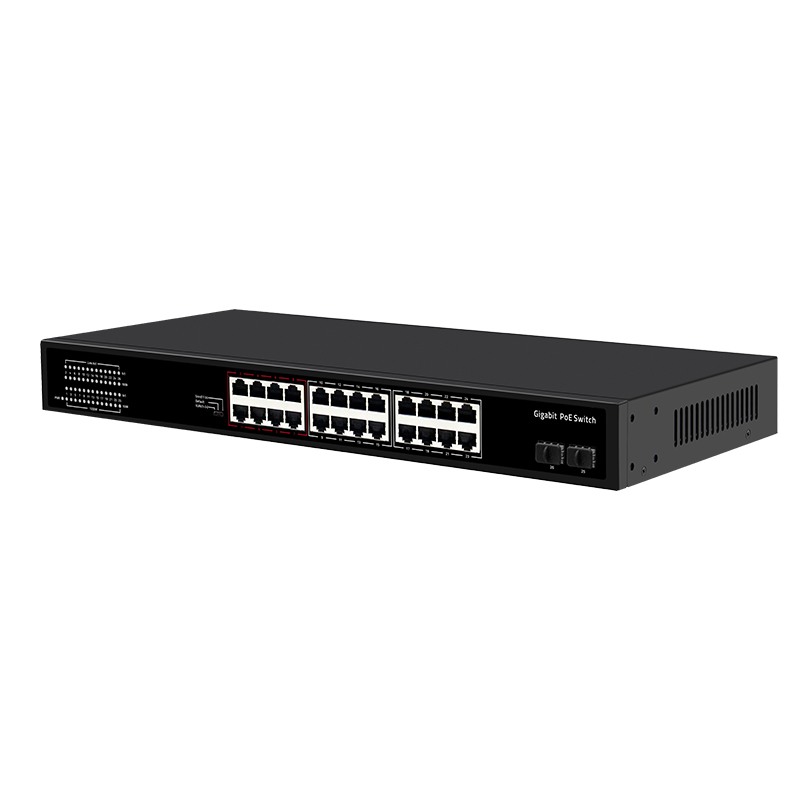

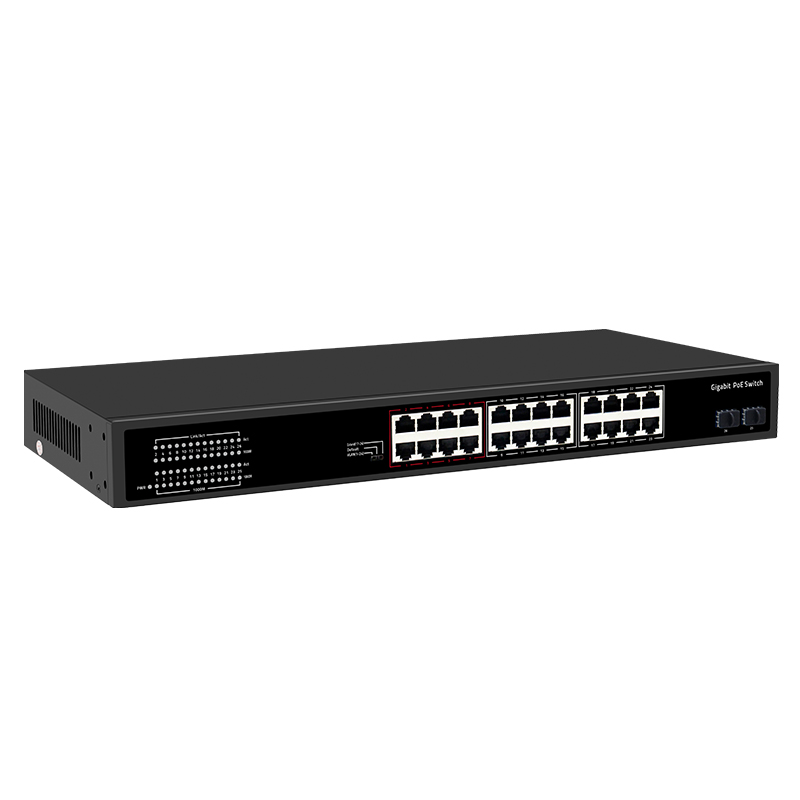

Factory OEM/ODM POE Switch 24 port 10/100/1000M ethernet fiber switch POE gigabit with 2 SFP ports

Model: SY-24G2SP Uncategorized Gigabit Poe Switch PoE Switch

Key Features:

  • Support for 24 Gigabit POE ports, + 2 Gigabit SFP optical ports;
  • Support for IEEE802.3, IEEE802.3u,IEEE802.3x,IEEE802.3ab,IEEE802.3z;
  • Compatible with IEEE802.3at (30W) and IEEE802.3af(15.4w);
  • Ethernet ports support 10 / 100 / 1000M adaptive and POE features;
  • Support for port automatic flip (Auto MDI/MDIX);
  • Exchange mechanism using storage and forwarding;
  • All ports support line-speed switching;
  • Zero configuration feature, automatically supplied to adaptive equipment;
  • Panel indicators monitor operating status and help with fault analysis;
  • Support for the 1-8-port QOS priority;
  • Three-gear one-key intelligent code dialing switch, supporting VLAN,Normal,Extend three modes;
  • Support port lightning protection Surge: common mode 4KV, differential mode 2KV; static ESD: air 8KV, contact 6KV;

Share it:

Share it:

Interested?

Welcome to Contact Us for a Quotation!

Ship within 7-10 Working Days for Stocking Products,Customized product should be negotiated

Specifications

Product model SY-24G2SP
Total Power of Machine 300W/400W

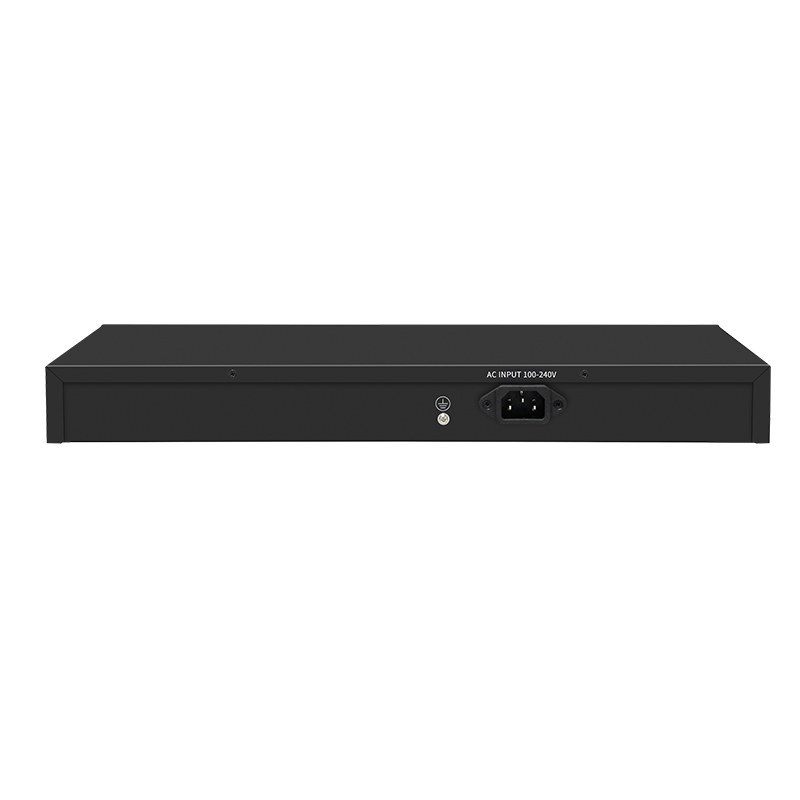

Power AC100-240V/50-60Hz
Ethernet 24* Gigabit PoE Ethernet Ports 2* Gigabit Uplink Ethernet Port
Switching Capacity 52Gbps
Packet Buffer 38.68Mpps
Giant frame 9.6Kbytes
MAC Address 8K
Jumbo Frame 9.6Kbytes
Transfer Mode Store and forward
MTBF 100000 hour
Power Voltage Input voltage: AC100-240V/50-60Hz Power supply power: 52V/5.76A
Working Environment Working Temperature: -10~50°C

Storage Temperature: -40~70°C
Working Humidity: 10%~90%,

non-condensing Storage Temperature: 5%~90%, non-condensing

Sailsky SY-24G2SP is 26 Gigabit Ethernet Power Switches (POE switches), high-quality network IC and the most stable POE chips, POE switches provide seamless connection to 10 / 100 / 1000 M Ethernet, and the POE supply port can automatically detect and supply receiving devices meeting IEEE802.3af or IEEE802.3at standards, non-POE devices intelligently detect no power and only transmit data. POE technology (Power over Ethernet), Ethernet power supply technology, while also providing DC power supply technology for some IP-based terminals, such as IP phones, wireless access AP, network cameras, etc., DC receiving devices called powered devices. With simple and convenient installation and maintenance means and rich business characteristics, we can help users to build a safe and reliable high-performance network. It is mainly located in the core or convergence layer of user networks of industrial parks, buildings, factories and mines, government organs, community broadband; and can be widely used in small and medium-sized enterprises, Internet cafes, hotels, schools and other Ethernet access scenarios.
