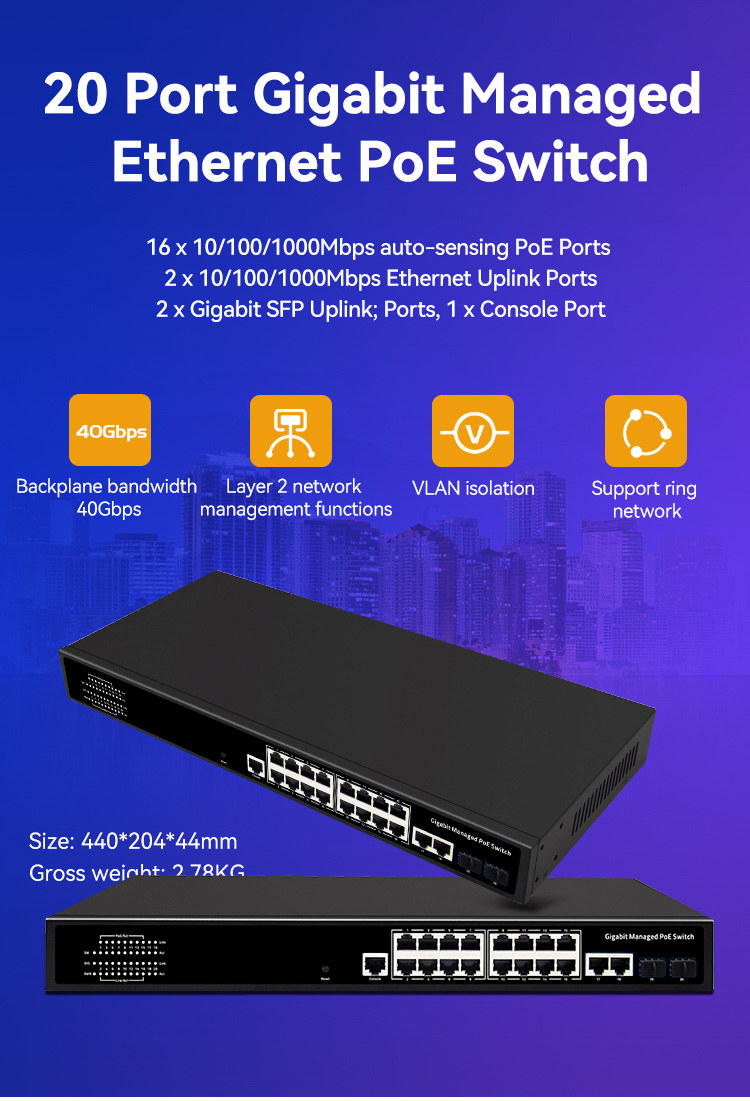

Sailsky 16 ports managed network poe switch with SFP support WLAN
Model: SY-16G2G2SMP Uncategorized Gigabit 2Layer Managed POE Switch Managed POE Switch
Key Features:
- 16 x 10/100/1000Mbps auto-sensing PoE Ports, 2 x 10/100/1000Mbps Ethernet Uplink Ports, 2 x Gigabit SFP Uplink Ports, 1 x Console Port;
- Support IEEE802.3/IEEE802.3i/IEEE802.3u/IEEE802.3ab/IEEE802.3z；
- Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w);
- Ethernet port supports 10/100/1000M adaptive;
- Panel indicator monitoring the status and help failure analysis;
- Fanless design, Natural Cooling, 1U Rack Mount;
- Support 802.1x port authentication, support AAA authentication, support TACACS+ authentication;
- Support WEB, TELNET, CLI, SSH, SNMP, RMON management;
- Support PoE Power Management, PoE watch dog;
- Surge Protection: General 4KV, Differential 2KV, ESD 8KV air, 6KV contact.
Specifications
| Product model | SY-16G2G2SMP |
| Total Power of Machine | 200W/300W |
| Power | AC100-240V，50/60Hz |
| Ethernet | 16 * 10/100/1000Mbps PoE Port 2* 10/100/1000Mbps Uplink Port 2* 1000Mbps SFP Port 1 * RJ45 Console Port |
| Switching Capacity | 40Gbps |
| Packet Buffer Memory | 4M |
| Flash Memory | 16MB |
| DDR SDRAM | 128MB |
| MAC Address | 8K |
| Jumbo Frame | 9.6Kbytes |
| Transfer Mode | Store and forward |
| MTBF | 100000 hour |
| Power Voltage | Input Voltage: AC100-240V/50-60Hz Power supply: 52V5.76A |
| Working Environment | Working Temperature: -10~50°C Storage Temperature: -40~70°C non-condensing Storage Temperature: 5%~90%, non-condensing |
The 20-Ports Gigabit Managed PoE Switch SY-16G2G2SMP. It adopts High-Quality and High-Speed Network IC and the most stable PoE Chip. The PoE port meets the IEEE802.3af or IEEE802.3at standard. This model can provide seamless connection for 10/100/1000M Ethernet, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE802.3af or IEEE802.3at standards. The Non-PoE devices are forcibly powered and only transmit data.
