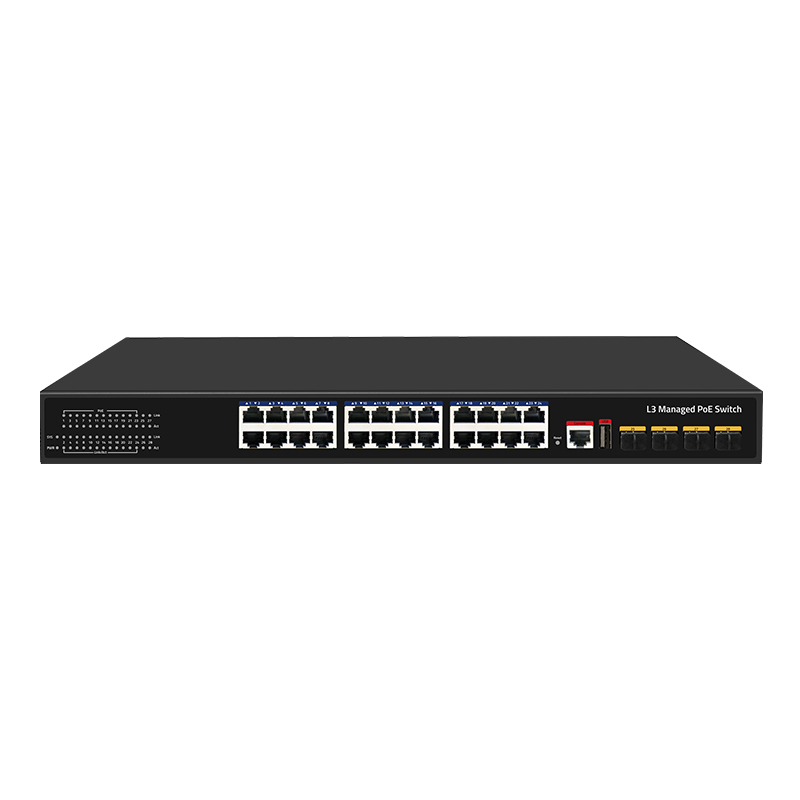

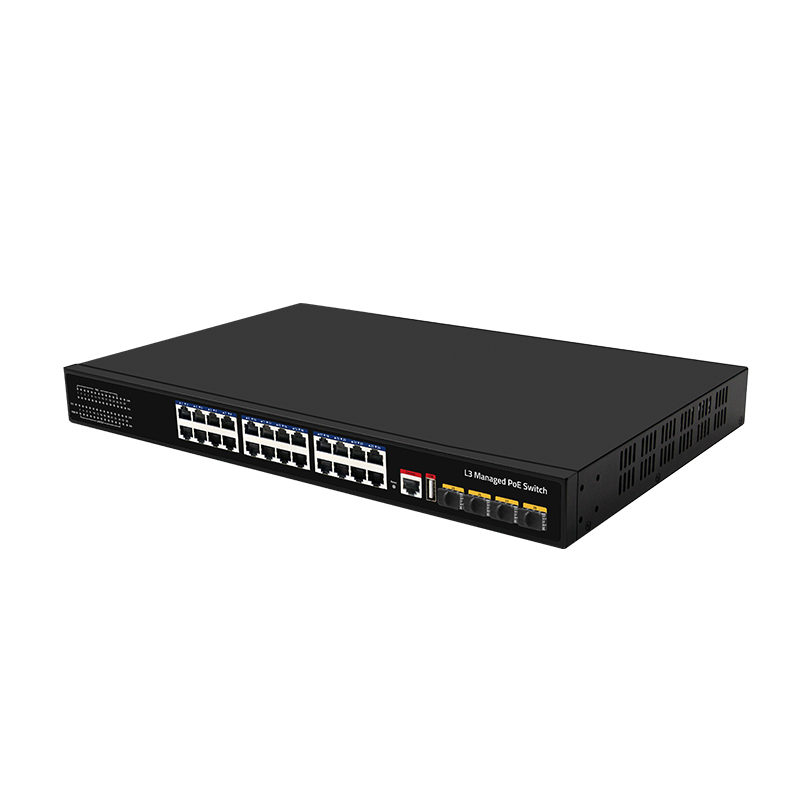

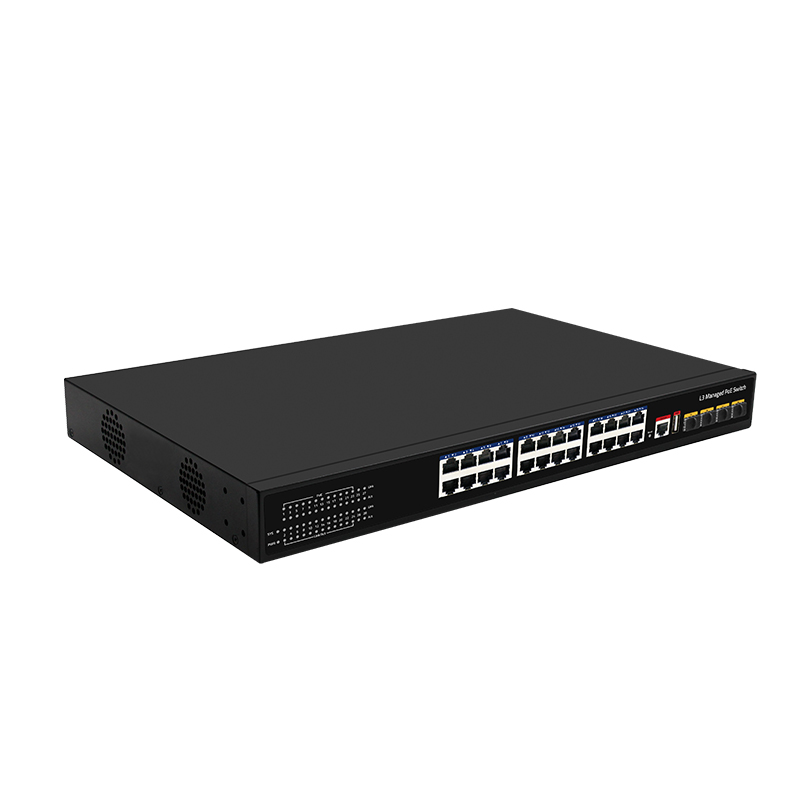

Layer3 switch 24 ports 1000Mbps POE switch 4 port 10G SFP Managed network switch giga 24 port

Model: SY-24G410G4SMP Uncategorized 10G 3Layer Managed POE Switch Managed POE Switch

Key Features:

  • Compatible with IEEE 802.1d、IEEE 802.1w、IEEE 802.1s、IEEE 802.1p、IEEE 802.3、IEEE 802.3u、IEEE 802.3x、IEEE 802.3z、IEEE 802.3ab、IEEE 802.3ae standard;
  • L3 Management,support DHCP Server, QoS, ACL control, support SNMP V1/V2/V3, support IGMP Snooping v1/v2;
  • Support Spanning Tree Protocol STP/RSTP/MSTP (ERPS), Support loop detection and self-healing, support remote loopback monitoring and control (802.3ah OAM);
  • Support multiple VLAN divisions, mac VLAN, protocol VLAN, private VLAN;
  • Support IP address + MAC address + VLAN + port binding, support DHCP Snooping, support IP source and DAI protection;
  • Support IPV4/IPV6,RIP,OSPF;
  • Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w) power supply standards;
  • Support PoE management, PoE watchdog;

Share it:

Share it:


Welcome to Contact Us for a Quotation!

Ship within 7-10 Working Days for Stocking Products,Customized product should be negotiated


Product model SY-24G410G4SMP
Total Power of Machine 400W
Power AC100-240V/50-60Hz
Ethernet 24*10/100/1000Mbps POE Port
4*10G SFP + Port 1*RJ45 Console Port
1*USB Port
Switching Capacity 128Gbps
Packet Buffer Memory 12Mbit
Flash Memory 16MB
MAC Address 16K
Jumbo Frame 12Kbytes
Transfer Mode Store and forward
MTBF 100000 hour
Power Voltage
Input voltage: AC100-240V/50-60Hz
 Power supply: 52V 7.5A 12V4A
Working Environment Working Temperature: -10~50°C

Storage Temperature: -40~70°C
Working Humidity: 10%~90%,

non-condensing Storage Temperature: 5%~90%, non-condensing

SY-24G410G4SMP is 28 Port 10G Uplink 24 Port Gigabit L3 Managed Ethernet POE Switch, which provide 24*10/100/1000 adaptive POE electrical port, 4*10G SFP+ Port,1*Console port, 1*USB series port. Used the high quality high speed network IC and the most stable POE chips, POE port satisified IEEE 802.3 af/at standard, this series POE Switch can provide no gap link for 10/100/1000M ethernet, and the PoE power supply port can automatically detect and supply power to the power receiving device that meets the standard, intelligent detection of non-PoE devices does not supply power, only transmits data. Completed security control strategy and CPU protect policy improve fault tolerance, ensure stable network operation and link load balance; equipment supports automatic DoS attack prevention and SNMP, IEEE 802.1, spanning tree and rapid spanning tree protocol, link aggregation and other functions . With advanced security functions and quality of service (QoS) , it can be used as core layer, distribution layer ,and access layer switch with high density port and easy management, is an ideal choice for various business network applications.
