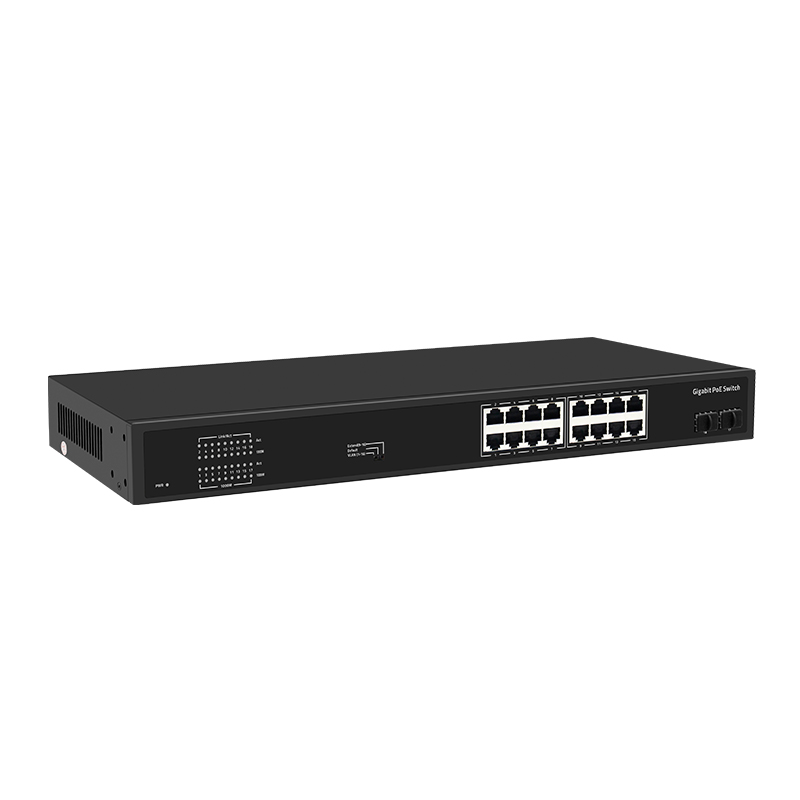

Factory OEM/ODM POE Network Switch SY-16G2SP 16 ports 10/100/1000M ethernet fiber switch POE gigabit with 2 SFP ports

Model: SY-16G2SP Uncategorized Gigabit Poe Switch PoE Switch

Key Features:

  • 16*10/100/1000M POE ports +2* Gigabit SFP Uplink Port;
  • Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3ab ,IEEE802.3z IEEE802.3x standards;
  • Ethernet port supports 10/100/1000M adaptive;
  • Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard;
  • Support port auto flip (Auto MDI/MDIX);
  • Automatically supplied to adaptive devices;
  • Panel indicator monitoring status and help failure analysis;
  • Support for VLAN mode, Default mode and Extend mode;
  • 1 U rack installation

Share it:

Share it:


Welcome to Contact Us for a Quotation!

Ship within 7-10 Working Days for Stocking Products,Customized product should be negotiated


Product model SY-16G2SP
Total Power of Machine 200W/300W

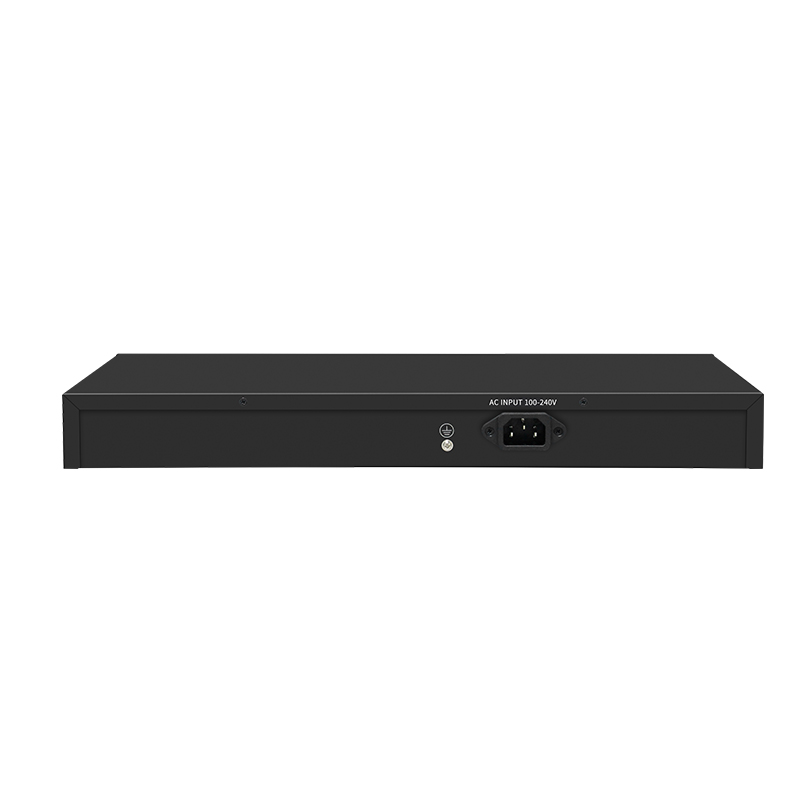

Power AC100-240V/50-60Hz
Ethernet 16* Gigabit PoE Ethernet Ports 2* Gigabit Uplink Ethernet Port
Switching Capacity 36Gbps
Packet Buffer 26.784Mpps
Memory cache 448Kb
MAC Address 8K
Jumbo Frame 9.6Kbytes
Transfer Mode Store and forward
MTBF 100000 hour
Power Voltage Input Voltage :AC 100-240 V Power supply:52V5.76A
Working Environment Working Temperature: -10~50°C

Storage Temperature: -40~70°C
Working Humidity: 10%~90%,

non-condensing Storage Temperature: 5%~90%, non-condensing

Sailsky SY-16G2SP is 18 Port Gigabit PoE Switch, using high-quality high-speed network IC and the most stable PoE chip, PoE Port support 802.3af and 802.3at standard both, this series of PoE Switch can be 10/100/ 1000M Ethernet The network provides a seamless connectionand the PoE power port can automatically detect and p ower the powered devices that comply with the IEEE802. 3af or IEEE802.3at standards. The non-PoE device intelligently detects no power and only transmits data. PoE is Power over Ethernet, which refers to the transmission of data signals to some IP-based terminals (such as IP phones, wireless access APs, network cameras, etc.), but also provides DC power for this device. Technology, these devices that receive DC power are called powered devices.
