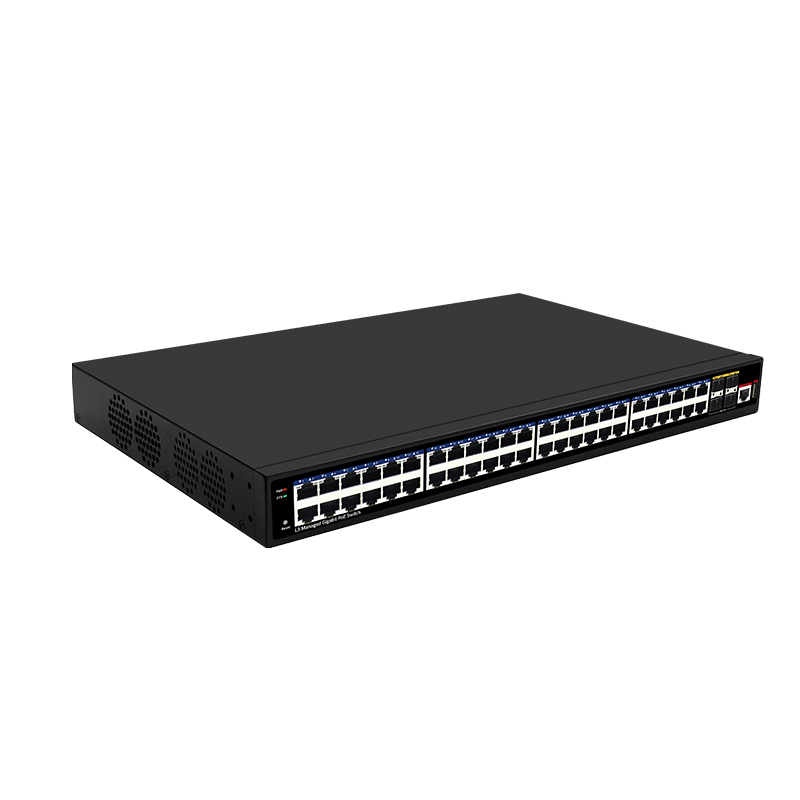

China Factory 10G 48 ports 4 SFP Enterprise Gigabit Managed PoE Rackmount Network Switch VLAN RJ45 Ethernet Switch

Model: SY-48G410G4SMP Uncategorized 10G 3Layer Managed POE Switch Managed POE Switch

Key Features:

  • Support IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.3. IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae standard;
  • L3 management,support DHCP Server, QoS, ACL Control, SNMP V1/V2/V3, IGMP Snooping v1/v2;
  • Support STP/RSTP/MSTP (ERPS), Support loop detection and self-healing, remote loop back monitoring and control (802.3ah OAM);
  • Support multiple VLAN divisions, MAC VLAN, protocol VLAN, and Private VLAN;
  • Support IP address +MAC address +VLAN+ port binding, DHCP Snooping, IP source and DAI protection;
  • Support IPV4/ IPV6, RIP, OSPF;
  • Surge Protection: Common mode≥6KV, ESD:Contact≥6KV. air≥8KV;
  • Support WEB, TELNET, CLI, SSH, SNMP, RMON management;
  • Support IEEE802.3at (30W) and IEEE802.3bt (90W);
  • Support PoE watchdog, PoE Port power supply, Power configuration and PoE time management.

Share it:

Share it:

Interested?

Welcome to Contact Us for a Quotation!

Ship within 7-10 Working Days for Stocking Products,Customized product should be negotiated

Specifications

Product model SY-48G410G4SMP
Total Power of Machine 650W
Power AC100-240V/50-60Hz
Ethernet 48* 10/100/1000Mbps POE Ports (Ports 1-8 support BT Power Supply) 4* 10G SFP+ Port
1* RJ45 Console Port 1* USB serial Port
Switching Capacity 176Gbps
Packet Buffer Memory 512MByte
Flash Memory 32MByte
DDR SDRAM 16Mbit
MAC Address 32K
Jumbo Frame 12Kbytes
Transfer Mode Store and forward
MTBF 100000 hour
Power Voltage
Working Voltage: AC100-240V 50/60Hz
Supply: 52V 11.5A/ 12V 6A
Working Environment Working Temperature: -10~50°C

Storage Temperature: -40~70°C
Working Humidity: 10%~90%,

non-condensing Storage Temperature: 5%~90%, non-condensing

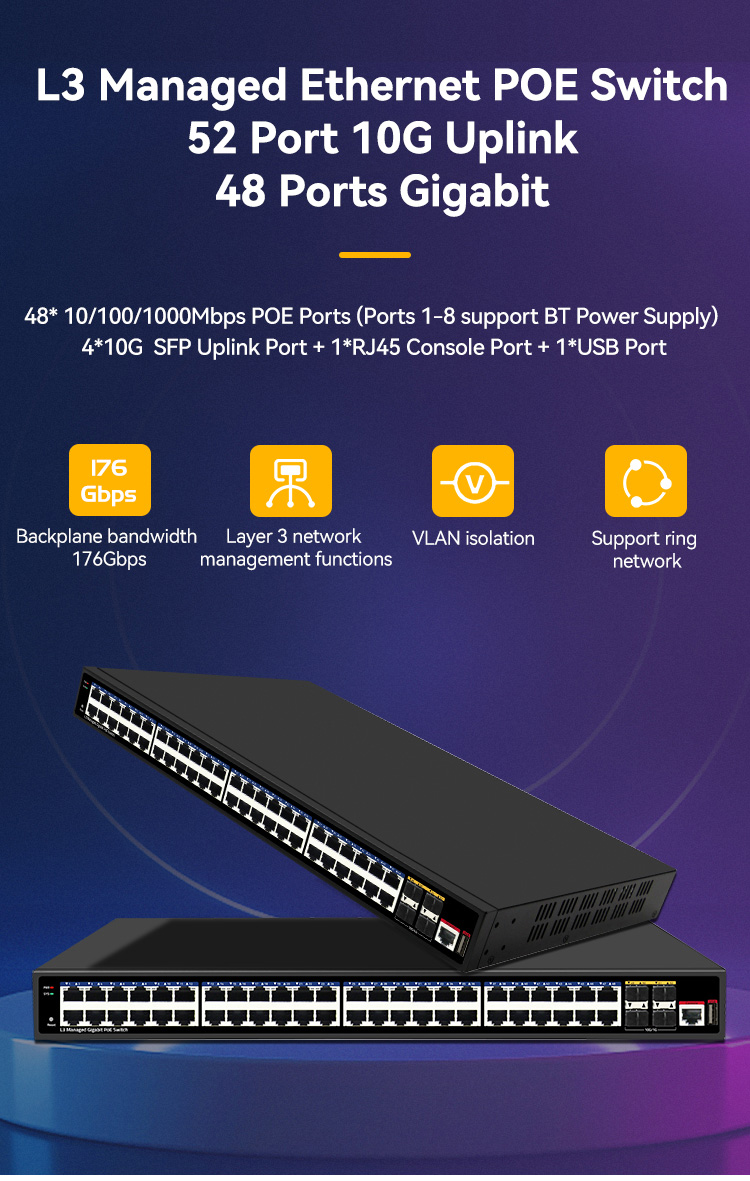

52 Port 10G Uplink 48 Ports Gigabit L3 Management Ethernet POE switch, provides 48* 10/100/1000M POE Ethernet Ports, 4* 10G SFP+ Ports, 1* console Port, 1* USB Serial Port. With perfect security control policy and CPU Protect Policy, it can improve fault tolerance and ensure the stable operation of the network and load balance of links. The switch supports automatic DoS attack defense, SNMP, IEEE 802.1, STP, RSTP, and link aggregation. With advanced security features and advanced quality of Service (QoS), it can be used as a core, distribution or access layer switch with high-end port density, ease of management, it is an ideal choice for a variety of business networking applications.
