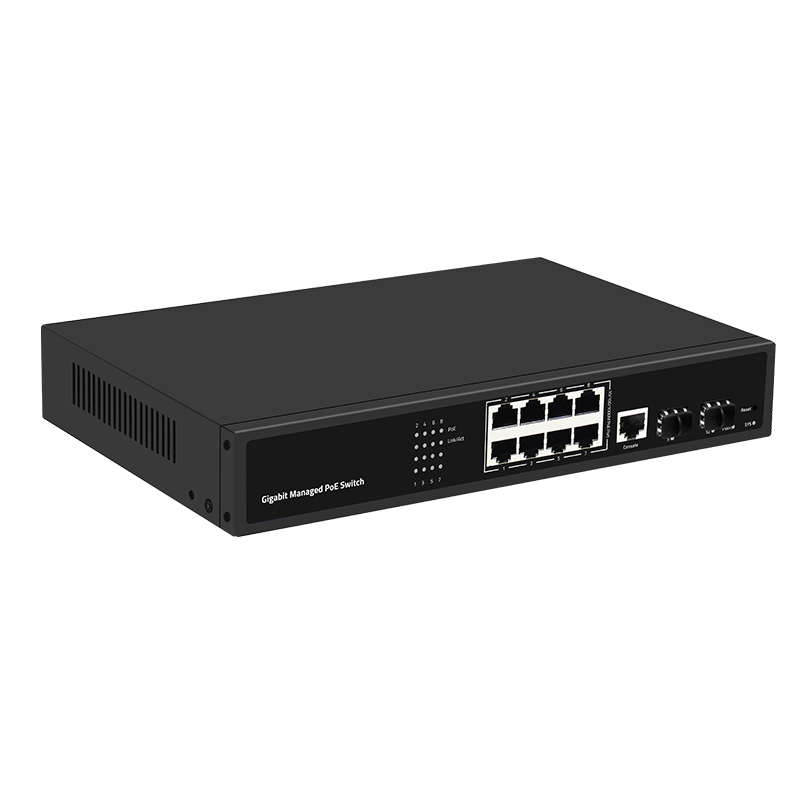

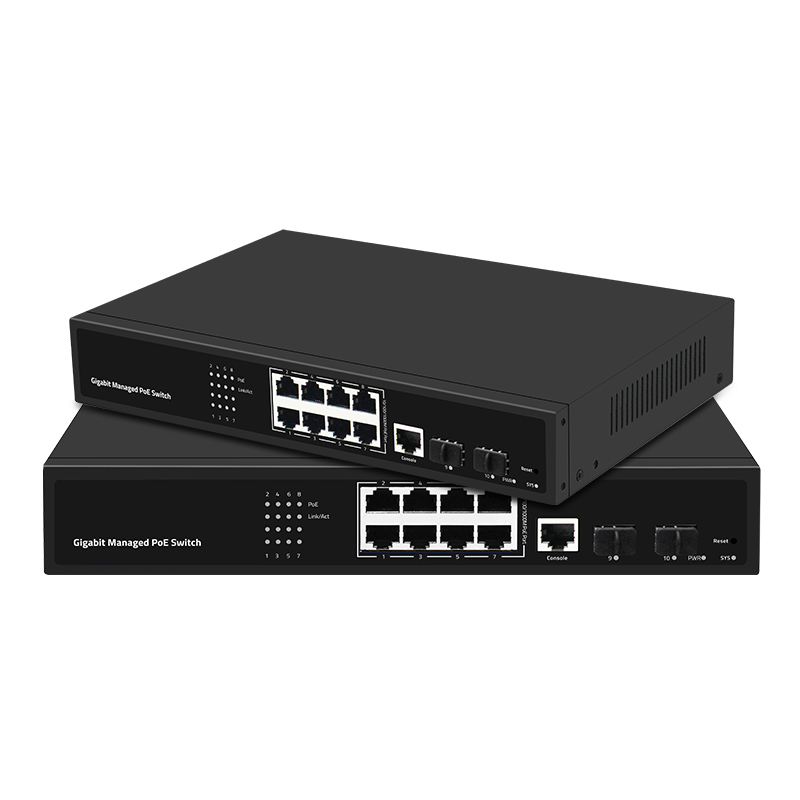

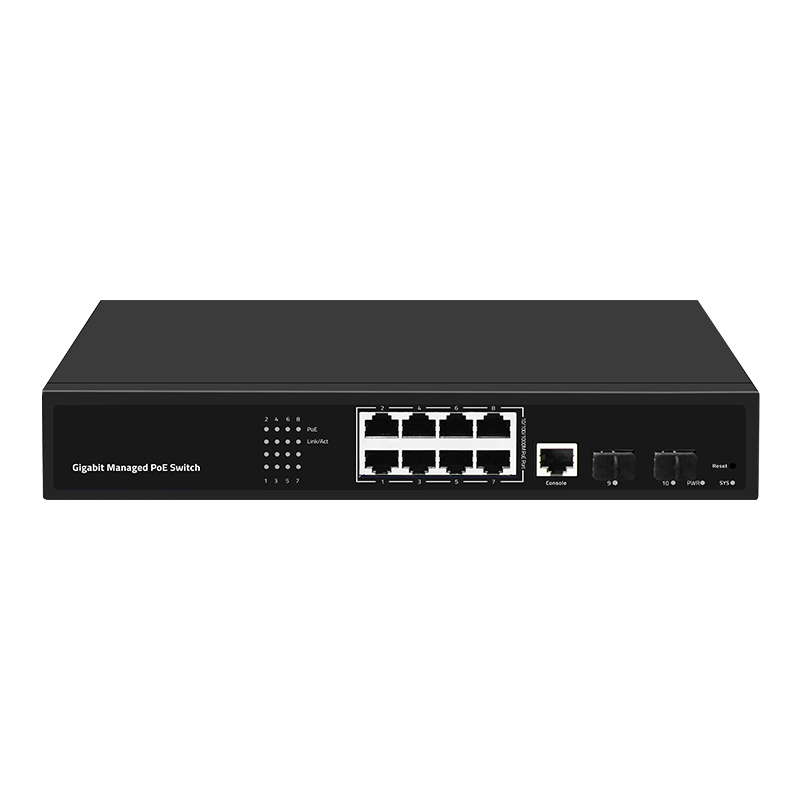

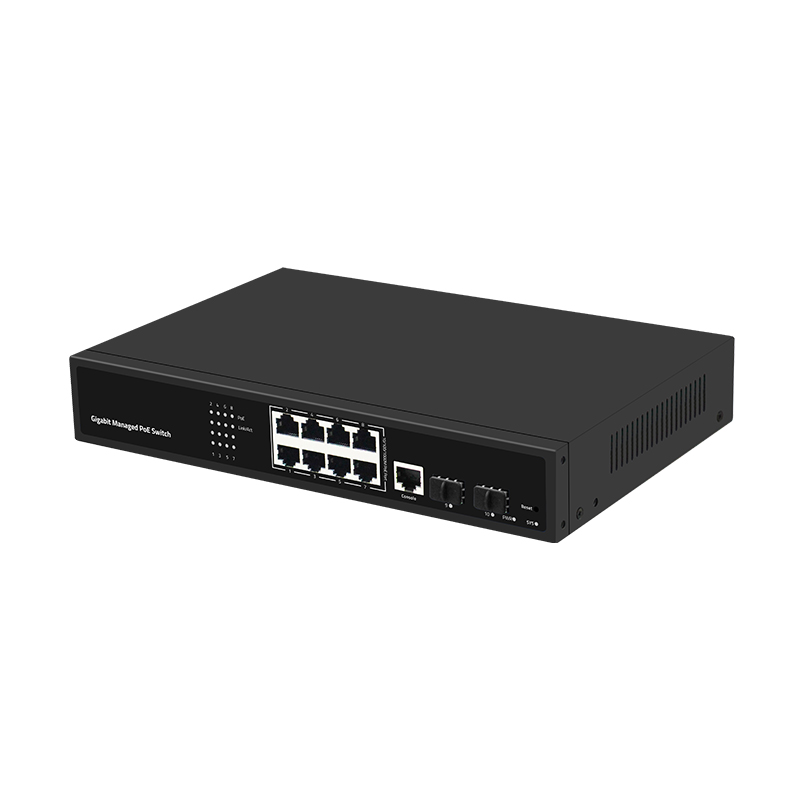

OEM L2 Gigabit Managed Poe Switch 8 Port With 2 SFP Fiber Port SY-8G2SMP

Model: SY-8G2SMP Uncategorized Gigabit 2Layer Managed POE Switch Managed POE Switch

Key Features:

  • 8*10/100/1000Mbps PoE Ports, 2*Gigabit SFP Uplink Ports, 1* Console Port;
  • Support IEEE802.3, IEEE802.3x,IEEE802.3u, IEEE802.3ab, IEEE802.3z standard;
  • Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w);
  • Ethernet port supports 10/100/1000M adaptive;
  • Support PoE management, POE watchdog;
  • Panel indicator monitoring the status and help failure analysis;
  • Support 1U rack installation;
  • Support 802.1x port authentication, AAA authentication, support TACACS+authentication;
  • Support WEB, TELNET, CLI, SSH, SNMP, RMON management;
  • The ports support 6KV Surge Protection;

Share it:

Share it:


Welcome to Contact Us for a Quotation!

Ship within 7-10 Working Days for Stocking Products,Customized product should be negotiated


Product model SY-8G2SMP
Total Power of Machine 120W
Power AC INPUT (100-240V)
Ethernet 8 * 10/100/1000Mbps PoE Port 2* 1000Mbps SFP Port
1 * RJ45 Console Port
Switching Capacity 20Gbps
Packet Buffer Memory 4Mpps
Flash Memory 16MB
MAC Address 8K
Jumbo Frame 9.6Kbytes
Transfer Mode Store and forward
MTBF 100000 hour
Power Voltage Input voltage: AC 100-240 V/50-60Hz

Power supply: 52V2.88A 150W

Working Environment Working Temperature: -10~50°C

Storage Temperature: -40~70°C
Working Humidity: 10%~90%,

non-condensing Storage Temperature: 5%~90%, non-condensing

The 10-Ports Gigabit Managed PoE Switch SY-8G2SMP, it adopts high-quality and high-speed network IC and the most stable PoE Chip set, the PoE ports meet the IEEE802.3af/at standard, this series of PoE switches provides seamless connection to 10/100/1000M Ethernet,with automatically detective function on PoE port,power the devices with IEEE802.3af/at standard but only transmit data without forcibly power for Non-PoE devices. PoE(Power over Ethernet)provides DC Power for IP-based terminals (such as IP telephones, wireless access AP, and network cameras) while transmitting data signals. The devices that receive DC Power are called Power receiving devices.
